Shape analysis and fitting#

Topics#

Planar subdivision

Detailed Description#

Classes#

Name	Description
`struct` `cv::MSTEdge`	Represents an edge in a graph for Minimum Spanning Tree (MST) computation. View details

Enumerations#

enum cv::Subdiv2D {
    cv::PTLOC_ERROR = -2,
    cv::PTLOC_OUTSIDE_RECT = -1,
    cv::PTLOC_INSIDE = 0,
    cv::PTLOC_VERTEX = 1,
    cv::PTLOC_ON_EDGE = 2
}

View details

enum cv::Subdiv2D {
    cv::NEXT_AROUND_ORG = 0x00,
    cv::NEXT_AROUND_DST = 0x22,
    cv::PREV_AROUND_ORG = 0x11,
    cv::PREV_AROUND_DST = 0x33,
    cv::NEXT_AROUND_LEFT = 0x13,
    cv::NEXT_AROUND_RIGHT = 0x31,
    cv::PREV_AROUND_LEFT = 0x20,
    cv::PREV_AROUND_RIGHT = 0x02
}

View details

enum cv::DistanceTypes {
    cv::DIST_USER = -1,
    cv::DIST_L1 = 1,
    cv::DIST_L2 = 2,
    cv::DIST_C = 3,
    cv::DIST_L12 = 4,
    cv::DIST_FAIR = 5,
    cv::DIST_WELSCH = 6,
    cv::DIST_HUBER = 7
}

View details

enum cv::MSTAlgorithm {
    cv::MST_PRIM = 0,
    cv::MST_KRUSKAL = 1
}

Represents the algorithms available for building a Minimum Spanning Tree (MST). View details

enum cv::RectanglesIntersectTypes {
    cv::INTERSECT_NONE = 0,
    cv::INTERSECT_PARTIAL = 1,
    cv::INTERSECT_FULL = 2
}

types of intersection between rectangles View details

Functions#

Return	Name	Description
	`cv::QuadEdge()`
	`cv::QuadEdge(int edgeidx)`
	`cv::Subdiv2D()`
	`cv::Subdiv2D(Rect rect)`
	`cv::Subdiv2D(Rect2f rect2f)`
	`cv::Vertex()`
	`cv::Vertex( Point2f pt, bool isvirtual, int firstEdge = 0 )`
`void`	`cv::approxPolyDP( InputArray curve, OutputArray approxCurve, double epsilon, bool closed )`	Approximates a polygonal curve(s) with the specified precision.
`void`	`cv::approxPolyN( InputArray curve, OutputArray approxCurve, int nsides, float epsilon_percentage = -1.0, bool ensure_convex = true )`	Approximates a polygon with a convex hull with a specified accuracy and number of sides.
`double`	`cv::arcLength( InputArray curve, bool closed )`	Calculates a contour perimeter or a curve length.
`Rect`	`cv::boundingRect(InputArray array)`	Calculates the up-right bounding rectangle of a point set or non-zero pixels of gray-scale image.
`void`	`cv::boxPoints( RotatedRect box, OutputArray points )`	Finds the four vertices of a rotated rect. Useful to draw the rotated rectangle.
`bool`	`cv::buildMST( int numNodes, const std::vector< MSTEdge > & inputEdges, std::vector< MSTEdge > & resultingEdges, MSTAlgorithm algorithm, int root = 0 )`	Builds a Minimum Spanning Tree (MST) using the specified algorithm (see MSTAlgorithm).
`void`	`cv::calcVoronoi()`
`void`	`cv::checkSubdiv()`
`void`	`cv::clearVoronoi()`
`int`	`cv::connectEdges( int edgeA, int edgeB )`
`double`	`cv::contourArea( InputArray contour, bool oriented = false )`	Calculates a contour area.
`void`	`cv::convexHull( InputArray points, OutputArray hull, bool clockwise = false, bool returnPoints = true )`	Finds the convex hull of a point set.
`void`	`cv::convexityDefects( InputArray contour, InputArray convexhull, OutputArray convexityDefects )`	Finds the convexity defects of a contour.
`void`	`cv::deleteEdge(int edge)`
`void`	`cv::deletePoint(int vtx)`
`int`	`cv::edgeDst( int edge, Point2f * dstpt = 0 )`	Returns the edge destination.
`int`	`cv::edgeOrg( int edge, Point2f * orgpt = 0 )`	Returns the edge origin.
`int`	`cv::findNearest( Point2f pt, Point2f * nearestPt = 0 )`	Finds the subdivision vertex closest to the given point.
`RotatedRect`	`cv::fitEllipse(InputArray points)`	Fits an ellipse around a set of 2D points.
`RotatedRect`	`cv::fitEllipseAMS(InputArray points)`	Fits an ellipse around a set of 2D points.
`RotatedRect`	`cv::fitEllipseDirect(InputArray points)`	Fits an ellipse around a set of 2D points.
`void`	`cv::fitLine( InputArray points, OutputArray line, int distType, double param, double reps, double aeps )`	Fits a line to a 2D or 3D point set.
`Mat`	`cv::getAffineTransform( const Point2f[] src, const Point2f[] dst )`	Calculates an affine transform from three pairs of the corresponding points.
`Mat`	`cv::getAffineTransform( InputArray src, InputArray dst )`
`void`	`cv::getClosestEllipsePoints( const RotatedRect & ellipse_params, InputArray points, OutputArray closest_pts )`	Compute for each 2d point the nearest 2d point located on a given ellipse.
`int`	`cv::getEdge( int edge, int nextEdgeType )`	Returns one of the edges related to the given edge.
`void`	`cv::getEdgeList(std::vector< Vec4f > & edgeList)`	Returns a list of all edges.
`void`	`cv::getLeadingEdgeList(std::vector< int > & leadingEdgeList)`	Returns a list of the leading edge ID connected to each triangle.
`Mat`	`cv::getPerspectiveTransform( const Point2f[] src, const Point2f[] dst, int solveMethod = DECOMP_LU )`
`Mat`	`cv::getPerspectiveTransform( InputArray src, InputArray dst, int solveMethod = DECOMP_LU )`	Calculates a perspective transform from four pairs of the corresponding points.
`Mat`	`cv::getRotationMatrix2D( Point2f center, double angle, double scale )`	Calculates an affine matrix of 2D rotation.
`Matx23d`	`cv::getRotationMatrix2D_( Point2f center, double angle, double scale )`
`void`	`cv::getTriangleList(std::vector< Vec6f > & triangleList)`	Returns a list of all triangles.
`Point2f`	`cv::getVertex( int vertex, int * firstEdge = 0 )`	Returns vertex location from vertex ID.
`void`	`cv::getVoronoiFacetList( const std::vector< int > & idx, std::vector< std::vector< Point2f > > & facetList, std::vector< Point2f > & facetCenters )`	Returns a list of all Voronoi facets.
`void`	`cv::HuMoments( const Moments & m, OutputArray hu )`
`void`	`cv::HuMoments( const Moments & moments, double[7] hu )`	Calculates seven Hu invariants.
`void`	`cv::initDelaunay(Rect rect)`	Creates a new empty Delaunay subdivision.
`void`	`cv::initDelaunay(Rect2f rect)`	Creates a new empty Delaunay subdivision.
`void`	`cv::insert(const std::vector< Point2f > & ptvec)`	Insert multiple points into a Delaunay triangulation.
`int`	`cv::insert(Point2f pt)`	Insert a single point into a Delaunay triangulation.
`float`	`cv::intersectConvexConvex( InputArray p1, InputArray p2, OutputArray p12, bool handleNested = true )`	Finds intersection of two convex polygons.
`void`	`cv::invertAffineTransform( InputArray M, OutputArray iM )`	Inverts an affine transformation.
`bool`	`cv::isContourConvex(InputArray contour)`	Tests a contour convexity.
`bool`	`cv::isfree()`
`bool`	`cv::isfree()`
`int`	`cv::isRightOf( Point2f pt, int edge )`
`bool`	`cv::isvirtual()`
`int`	`cv::locate( Point2f pt, int & edge, int & vertex )`	Returns the location of a point within a Delaunay triangulation.
`double`	`cv::matchShapes( InputArray contour1, InputArray contour2, int method, double parameter )`	Compares two shapes.
`RotatedRect`	`cv::minAreaRect(InputArray points)`	Finds a rotated rectangle of the minimum area enclosing the input 2D point set.
`void`	`cv::minEnclosingCircle( InputArray points, Point2f & center, float & radius )`	Finds a circle of the minimum area enclosing a 2D point set.
`double`	`cv::minEnclosingConvexPolygon( InputArray points, OutputArray polygon, int k )`	Finds a convex polygon of minimum area enclosing a 2D point set and returns its area.
`double`	`cv::minEnclosingTriangle( InputArray points, OutputArray triangle )`	Finds a triangle of minimum area enclosing a 2D point set and returns its area.
`Moments`	`cv::moments( InputArray array, bool binaryImage = false )`	Calculates all of the moments up to the third order of a polygon or rasterized shape.
`int`	`cv::newEdge()`
`int`	`cv::newPoint( Point2f pt, bool isvirtual, int firstEdge = 0 )`
`int`	`cv::nextEdge(int edge)`	Returns next edge around the edge origin.
`double`	`cv::pointPolygonTest( InputArray contour, Point2f pt, bool measureDist )`	Performs a point-in-contour test.
`int`	`cv::rotatedRectangleIntersection( const RotatedRect & rect1, const RotatedRect & rect2, OutputArray intersectingRegion )`	Finds out if there is any intersection between two rotated rectangles.
`int`	`cv::rotateEdge( int edge, int rotate )`	Returns another edge of the same quad-edge.
`void`	`cv::setEdgePoints( int edge, int orgPt, int dstPt )`
`void`	`cv::splice( int edgeA, int edgeB )`
`void`	`cv::swapEdges(int edge)`
`int`	`cv::symEdge(int edge)`

Variables#

Type	Name	Description
`Point2f`	`bottomRight`	Bottom right corner of the bounding rect.
`int`	`firstEdge`
`int`	`freePoint`
`int`	`freeQEdge`
`int`	`next`
`int`	`pt`
`Point2f`	`pt`
`std::vector< QuadEdge >`	`qedges`	All of the edges.
`int`	`recentEdge`
`Point2f`	`topLeft`	Top left corner of the bounding rect.
`int`	`type`
`bool`	`validGeometry`
`std::vector< Vertex >`	`vtx`	All of the vertices.

Enumeration Type Documentation#

enum#

#include <opencv2/geometry/2d.hpp>

Subdiv2D point location cases

Enumerator:

`PTLOC_ERROR`	Point location error.
`PTLOC_OUTSIDE_RECT`	Point outside the subdivision bounding rect.
`PTLOC_INSIDE`	Point inside some facet.
`PTLOC_VERTEX`	Point coincides with one of the subdivision vertices.
`PTLOC_ON_EDGE`	Point on some edge.

enum#

#include <opencv2/geometry/2d.hpp>

Subdiv2D edge type navigation (see: getEdge())

Enumerator:

NEXT_AROUND_ORG

NEXT_AROUND_DST

PREV_AROUND_ORG

PREV_AROUND_DST

NEXT_AROUND_LEFT

NEXT_AROUND_RIGHT

PREV_AROUND_LEFT

PREV_AROUND_RIGHT

DistanceTypes#

enum cv::DistanceTypes

#include <opencv2/geometry/2d.hpp>

Distance types for Distance Transform and M-estimators

See also

distanceTransform, fitLine

Enumerator:

`DIST_USER` Python: `cv.DIST_USER`	User defined distance.
`DIST_L1` Python: `cv.DIST_L1`	distance = \|x1-x2\| + \|y1-y2\|
`DIST_L2` Python: `cv.DIST_L2`	the simple euclidean distance
`DIST_C` Python: `cv.DIST_C`	distance = max(\|x1-x2\|,\|y1-y2\|)
`DIST_L12` Python: `cv.DIST_L12`	L1-L2 metric: distance = 2(sqrt(1+x*x/2) - 1))
`DIST_FAIR` Python: `cv.DIST_FAIR`	distance = c^2(\|x\|/c-log(1+\|x\|/c)), c = 1.3998
`DIST_WELSCH` Python: `cv.DIST_WELSCH`	distance = c^2/2(1-exp(-(x/c)^2)), c = 2.9846
`DIST_HUBER` Python: `cv.DIST_HUBER`	distance = \|x\|<c ? x^2/2 : c(\|x\|-c/2), c=1.345

MSTAlgorithm#

enum cv::MSTAlgorithm

#include <opencv2/geometry/mst.hpp>

Represents the algorithms available for building a Minimum Spanning Tree (MST).

More algorithms may be added in the future.

Enumerator:

MST_PRIM
Python: cv.MST_PRIM

MST_KRUSKAL
Python: cv.MST_KRUSKAL

RectanglesIntersectTypes#

enum cv::RectanglesIntersectTypes

#include <opencv2/geometry/2d.hpp>

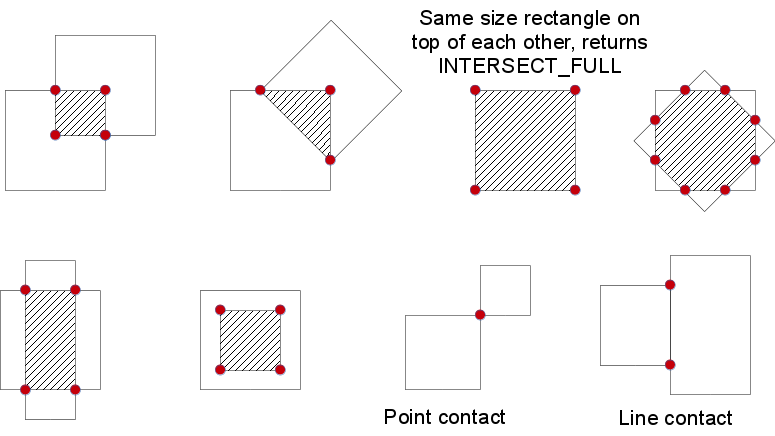

types of intersection between rectangles

Enumerator:

`INTERSECT_NONE` Python: `cv.INTERSECT_NONE`	No intersection.
`INTERSECT_PARTIAL` Python: `cv.INTERSECT_PARTIAL`	There is a partial intersection.
`INTERSECT_FULL` Python: `cv.INTERSECT_FULL`	One of the rectangle is fully enclosed in the other.

Function Documentation#

Vertex()#

cv::Subdiv2D::Vertex::Vertex(
Point2f pt,
bool isvirtual,
int firstEdge = 0 )

#include <opencv2/geometry/2d.hpp>

approxPolyDP()#

void cv::approxPolyDP(
InputArray curve,
OutputArray approxCurve,
double epsilon,
bool closed )

#include <opencv2/geometry/2d.hpp>

Python:

cv.approxPolyDP(curve, epsilon, closed[, approxCurve]) -> approxCurve

Approximates a polygonal curve(s) with the specified precision.

T he function cv::approxPolyDP approximates a curve or a p*olygon with another curve/polygon with less vertices so that the distance between them is less or equal to the specified precision. It uses the Douglas-Peucker algorithm https://en.wikipedia.org/wiki/Ramer-Douglas-Peucker_algorithm

Parameters

curve — Input vector of a 2D point stored in std::vector or Mat
approxCurve — Result of the approximation. The type should match the type of the input curve.
epsilon — Parameter specifying the approximation accuracy. This is the maximum distance between the original curve and its approximation.
closed — If true, the approximated curve is closed (its first and last vertices are connected). Otherwise, it is not closed.

approxPolyN()#

void cv::approxPolyN(
InputArray curve,
OutputArray approxCurve,
int nsides,
float epsilon_percentage = -1.0,
bool ensure_convex = true )

#include <opencv2/geometry/2d.hpp>

Python:

cv.approxPolyN(curve, nsides[, approxCurve[, epsilon_percentage[, ensure_convex]]]) -> approxCurve

Approximates a polygon with a convex hull with a specified accuracy and number of sides.

T he cv::approxPolyN function approximates a polygon with *a convex hull so that the difference between the contour area of the original contour and the new polygon is minimal. It uses a greedy algorithm for contracting two vertices into one in such a way that the additional area is minimal. Straight lines formed by each edge of the convex contour are drawn and the areas of the resulting triangles are considered. Each vertex will lie either on the original contour or outside it.

The algorithm based on the paper [168] .

Parameters

curve — Input vector of a 2D points stored in std::vector or Mat, points must be float or integer.
approxCurve — Result of the approximation. The type is vector of a 2D point (Point2f or Point) in std::vector or Mat.
nsides — The parameter defines the number of sides of the result polygon.
epsilon_percentage — defines the percentage of the maximum of additional area. If it equals -1, it is not used. Otherwise algorithm stops if additional area is greater than contourArea(_curve) * percentage. If additional area exceeds the limit, algorithm returns as many vertices as there were at the moment the limit was exceeded.
ensure_convex — If it is true, algorithm creates a convex hull of input contour. Otherwise input vector should be convex.

arcLength()#

double cv::arcLength(
InputArray curve,
bool closed )

#include <opencv2/geometry/2d.hpp>

Python:

cv.arcLength(curve, closed) -> retval

Calculates a contour perimeter or a curve length.

The function computes a curve length or a closed contour perimeter.

Parameters

curve — Input vector of 2D points, stored in std::vector or Mat.
closed — Flag indicating whether the curve is closed or not.

boundingRect()#

Rect cv::boundingRect(InputArray array)

#include <opencv2/geometry/2d.hpp>

Python:

cv.boundingRect(array) -> retval

Calculates the up-right bounding rectangle of a point set or non-zero pixels of gray-scale image.

The function calculates and returns the minimal up-right bounding rectangle for the specified point set or non-zero pixels of gray-scale image.

Parameters

array — Input gray-scale image or 2D point set, stored in std::vector or Mat.

boxPoints()#

void cv::boxPoints(
RotatedRect box,
OutputArray points )

#include <opencv2/geometry/2d.hpp>

Python:

cv.boxPoints(box[, points]) -> points

Finds the four vertices of a rotated rect. Useful to draw the rotated rectangle.

The function finds the four vertices of a rotated rectangle. The four vertices are returned in clockwise order starting from the point with greatest \(y\). If two points have the same \(y\) coordinate the rightmost is the starting point. This function is useful to draw the rectangle. In C++, instead of using this function, you can directly use RotatedRect::points method. Please visit the tutorial on Creating Bounding rotated boxes and ellipsesfor contours” for more information.

Parameters

box — The input rotated rectangle. It may be the output of minAreaRect.
points — The output array of four vertices of rectangles.

buildMST()#

bool cv::buildMST(
int numNodes,
const std::vector< MSTEdge > & inputEdges,
std::vector< MSTEdge > & resultingEdges,
MSTAlgorithm algorithm,
int root = 0 )

#include <opencv2/geometry/mst.hpp>

Python:

cv.buildMST(numNodes, inputEdges, algorithm[, root]) -> retval, resultingEdges

Builds a Minimum Spanning Tree (MST) using the specified algorithm (see MSTAlgorithm).

Supports graphs with negative edge weights. Self-loop edges (edges where source and target are the same) are ignored. If multiple edges exist between the same pair of nodes, only the one with the lowest weight is considered. If the graph is disconnected or input is invalid, the function returns false.

Note

The root parameter is ignored for algorithms that do not require a starting node.

Additional MST algorithms may be supported in the future via the algorithm parameter (see MSTAlgorithm).

Parameters

numNodes — Number of nodes in the graph (must be greater than 0).
inputEdges — Input vector of edges representing the graph.
resultingEdges — Output vector to store the edges of the resulting MST.
algorithm — Specifies which algorithm to use to compute the MST (see MSTAlgorithm).
root — Starting node for the MST algorithm (only used for certain algorithms).

Returns

true if a valid MST was successfully built; false otherwise.

contourArea()#

double cv::contourArea(
InputArray contour,
bool oriented = false )

#include <opencv2/geometry/2d.hpp>

Python:

cv.contourArea(contour[, oriented]) -> retval

Calculates a contour area.

The function computes a contour area. Similarly to moments , the area is computed using the Green formula. Thus, the returned area and the number of non-zero pixels, if you draw the contour using drawContours or fillPoly , can be different. Also, the function will most certainly give a wrong results for contours with self-intersections.

Example:

vector<Point> contour;
contour.push_back(Point2f(0, 0));
contour.push_back(Point2f(10, 0));
contour.push_back(Point2f(10, 10));
contour.push_back(Point2f(5, 4));

double area0 = contourArea(contour);
vector<Point> approx;
approxPolyDP(contour, approx, 5, true);
double area1 = contourArea(approx);

cout << "area0 =" << area0 << endl <<
        "area1 =" << area1 << endl <<
        "approx poly vertices" << approx.size() << endl;

Parameters

contour — Input vector of 2D points (contour vertices), stored in std::vector or Mat.
oriented — Oriented area flag. If it is true, the function returns a signed area value, depending on the contour orientation (clockwise or counter-clockwise). Using this feature you can determine orientation of a contour by taking the sign of an area. By default, the parameter is false, which means that the absolute value is returned.

convexHull()#

void cv::convexHull(
InputArray points,
OutputArray hull,
bool clockwise = false,
bool returnPoints = true )

#include <opencv2/geometry/2d.hpp>

Python:

cv.convexHull(points[, hull[, clockwise[, returnPoints]]]) -> hull

Finds the convex hull of a point set.

The function cv::convexHull finds the convex hull of a 2D point set using the Sklansky’s algorithm [276] that has O(N logN) complexity in the current implementation.

Note

points and hull should be different arrays, inplace processing isn’t supported.

Check the corresponding tutorial for more details.

useful links:

https://www.learnopencv.com/convex-hull-using-opencv-in-python-and-c/

Parameters

points — Input 2D point set, stored in std::vector or Mat.
hull — Output convex hull. It is either an integer vector of indices or vector of points. In the first case, the hull elements are 0-based indices of the convex hull points in the original array (since the set of convex hull points is a subset of the original point set). In the second case, hull elements are the convex hull points themselves.
clockwise — Orientation flag. If it is true, the output convex hull is oriented clockwise. Otherwise, it is oriented counter-clockwise. The assumed coordinate system has its X axis pointing to the right, and its Y axis pointing upwards.
returnPoints — Operation flag. In case of a matrix, when the flag is true, the function returns convex hull points. Otherwise, it returns indices of the convex hull points. When the output array is std::vector, the flag is ignored, and the output depends on the type of the vector: std::vector implies returnPoints=false, std::vector implies returnPoints=true.

convexityDefects()#

void cv::convexityDefects(
InputArray contour,
InputArray convexhull,
OutputArray convexityDefects )

#include <opencv2/geometry/2d.hpp>

Python:

cv.convexityDefects(contour, convexhull[, convexityDefects]) -> convexityDefects

Finds the convexity defects of a contour.

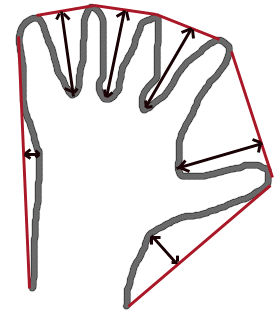

The figure below displays convexity defects of a hand contour:

Parameters

contour — Input contour.
convexhull — Convex hull obtained using convexHull that should contain indices of the contour points that make the hull.
convexityDefects — The output vector of convexity defects. In C++ and the new Python/Java interface each convexity defect is represented as 4-element integer vector (a.k.a. Vec4i): (start_index, end_index, farthest_pt_index, fixpt_depth), where indices are 0-based indices in the original contour of the convexity defect beginning, end and the farthest point, and fixpt_depth is fixed-point approximation (with 8 fractional bits) of the distance between the farthest contour point and the hull. That is, to get the floating-point value of the depth will be fixpt_depth/256.0.

fitEllipse()#

RotatedRect cv::fitEllipse(InputArray points)

#include <opencv2/geometry/2d.hpp>

Python:

cv.fitEllipse(points) -> retval

Fits an ellipse around a set of 2D points.

The function calculates the ellipse that fits (in a least-squares sense) a set of 2D points best of all. It returns the rotated rectangle in which the ellipse is inscribed. The first algorithm described by [106] is used. Developer should keep in mind that it is possible that the returned ellipse/rotatedRect data contains negative indices, due to the data points being close to the border of the containing Mat element.

Note

Input point types are Point2i or Point2f and at least 5 points are required.

getClosestEllipsePoints function can be used to compute the ellipse fitting error.

Parameters

points — Input 2D point set, stored in std::vector<> or Mat

fitEllipseAMS()#

RotatedRect cv::fitEllipseAMS(InputArray points)

#include <opencv2/geometry/2d.hpp>

Python:

cv.fitEllipseAMS(points) -> retval

Fits an ellipse around a set of 2D points.

The function calculates the ellipse that fits a set of 2D points. It returns the rotated rectangle in which the ellipse is inscribed. The Approximate Mean Square (AMS) proposed by Taubin1991 is used.

For an ellipse, this basis set is \( \chi= \left(x^2, x y, y^2, x, y, 1\right) \), which is a set of six free coefficients \( A^T=\left\{A_{\text{xx}},A_{\text{xy}},A_{\text{yy}},A_x,A_y,A_0\right\} \). However, to specify an ellipse, all that is needed is five numbers; the major and minor axes lengths \( (a,b) \), the position \( (x_0,y_0) \), and the orientation \( \theta \). This is because the basis set includes lines, quadratics, parabolic and hyperbolic functions as well as elliptical functions as possible fits. If the fit is found to be a parabolic or hyperbolic function then the standard fitEllipse method is used. The AMS method restricts the fit to parabolic, hyperbolic and elliptical curves by imposing the condition that \( A^T ( D_x^T D_x + D_y^T D_y) A = 1 \) where the matrices \( Dx \) and \( Dy \) are the partial derivatives of the design matrix \( D \) with respect to x and y. The matrices are formed row by row applying the following to each of the points in the set: \begin{align*} D(i,:)&=\left{x_i^2, x_i y_i, y_i^2, x_i, y_i, 1\right} & D_x(i,:)&=\left{2 x_i,y_i,0,1,0,0\right} & D_y(i,:)&=\left{0,x_i,2 y_i,0,1,0\right} \end{align*} The AMS method minimizes the cost function \begin{equation*} \epsilon ^2=\frac{ A^T D^T D A }{ A^T (D_x^T D_x + D_y^T D_y) A^T } \end{equation*}

The minimum cost is found by solving the generalized eigenvalue problem.

\[\begin{equation*} D^T D A = \lambda \left( D_x^T D_x + D_y^T D_y\right) A \end{equation*}\]

Note

Input point types are Point2i or Point2f and at least 5 points are required.

getClosestEllipsePoints function can be used to compute the ellipse fitting error.

Parameters

points — Input 2D point set, stored in std::vector<> or Mat

fitEllipseDirect()#

RotatedRect cv::fitEllipseDirect(InputArray points)

#include <opencv2/geometry/2d.hpp>

Python:

cv.fitEllipseDirect(points) -> retval

Fits an ellipse around a set of 2D points.

The function calculates the ellipse that fits a set of 2D points. It returns the rotated rectangle in which the ellipse is inscribed. The Direct least square (Direct) method by [235] is used.

For an ellipse, this basis set is \( \chi= \left(x^2, x y, y^2, x, y, 1\right) \), which is a set of six free coefficients \( A^T=\left\{A_{\text{xx}},A_{\text{xy}},A_{\text{yy}},A_x,A_y,A_0\right\} \). However, to specify an ellipse, all that is needed is five numbers; the major and minor axes lengths \( (a,b) \), the position \( (x_0,y_0) \), and the orientation \( \theta \). This is because the basis set includes lines, quadratics, parabolic and hyperbolic functions as well as elliptical functions as possible fits. The Direct method confines the fit to ellipses by ensuring that \( 4 A_{xx} A_{yy}- A_{xy}^2 > 0 \). The condition imposed is that \( 4 A_{xx} A_{yy}- A_{xy}^2=1 \) which satisfies the inequality and as the coefficients can be arbitrarily scaled is not overly restrictive.

\[\begin{equation*} \epsilon ^2= A^T D^T D A \quad \text{with} \quad A^T C A =1 \quad \text{and} \quad C=\left(\begin{matrix} 0 & 0 & 2 & 0 & 0 & 0 \\ 0 & -1 & 0 & 0 & 0 & 0 \\ 2 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 \end{matrix} \right) \end{equation*}\]

The minimum cost is found by solving the generalized eigenvalue problem.

\[\begin{equation*} D^T D A = \lambda \left( C\right) A \end{equation*}\]

The system produces only one positive eigenvalue \( \lambda\) which is chosen as the solution with its eigenvector \(\mathbf{u}\). These are used to find the coefficients

\begin{equation*} A = \sqrt{\frac{1}{\mathbf{u}^T C \mathbf{u}}} \mathbf{u} \end{equation*} The scaling factor guarantees that \(A^T C A =1\).

Note

Input point types are Point2i or Point2f and at least 5 points are required.

getClosestEllipsePoints function can be used to compute the ellipse fitting error.

Parameters

points — Input 2D point set, stored in std::vector<> or Mat

fitLine()#

void cv::fitLine(
InputArray points,
OutputArray line,
int distType,
double param,
double reps,
double aeps )

#include <opencv2/geometry/2d.hpp>

Python:

cv.fitLine(points, distType, param, reps, aeps[, line]) -> line

Fits a line to a 2D or 3D point set.

The function fitLine fits a line to a 2D or 3D point set by minimizing \(\sum_i \rho(r_i)\) where \(r_i\) is a distance between the \(i^{th}\) point, the line and \(\rho(r)\) is a distance function, one of the following:

DIST_L2

\[ \rho (r) = r^2/2 \quad \text{(the simplest and the fastest least-squares method)} \]

DIST_L1

\[ \rho (r) = r \]

DIST_L12

\[ \rho (r) = 2 \cdot ( \sqrt{1 + \frac{r^2}{2}} - 1) \]

DIST_FAIR

\[ \rho \left (r \right ) = C^2 \cdot \left ( \frac{r}{C} - \log{\left(1 + \frac{r}{C}\right)} \right ) \quad \text{where} \quad C=1.3998 \]

DIST_WELSCH

\[ \rho \left (r \right ) = \frac{C^2}{2} \cdot \left ( 1 - \exp{\left(-\left(\frac{r}{C}\right)^2\right)} \right ) \quad \text{where} \quad C=2.9846 \]

DIST_HUBER

\[ \rho (r) = \fork{r^2/2}{if \(r < C\)}{C \cdot (r-C/2)}{otherwise} \quad \text{where} \quad C=1.345 \]

The algorithm is based on the M-estimator ( https://en.wikipedia.org/wiki/M-estimator ) technique that iteratively fits the line using the weighted least-squares algorithm. After each iteration the weights \(w_i\) are adjusted to be inversely proportional to \(\rho(r_i)\) .

Parameters

points — Input vector of 2D or 3D points, stored in std::vector<> or Mat.
line — Output line parameters. In case of 2D fitting, it should be a vector of 4 elements (like Vec4f) - (vx, vy, x0, y0), where (vx, vy) is a normalized vector collinear to the line and (x0, y0) is a point on the line. In case of 3D fitting, it should be a vector of 6 elements (like Vec6f) - (vx, vy, vz, x0, y0, z0), where (vx, vy, vz) is a normalized vector collinear to the line and (x0, y0, z0) is a point on the line.
distType — Distance used by the M-estimator, see DistanceTypes
param — Numerical parameter ( C ) for some types of distances. If it is 0, an optimal value is chosen.
reps — Sufficient accuracy for the radius (distance between the coordinate origin and the line).
aeps — Sufficient accuracy for the angle. 0.01 would be a good default value for reps and aeps.

getAffineTransform()#

Mat cv::getAffineTransform(
const Point2f[] src,
const Point2f[] dst )

#include <opencv2/geometry/2d.hpp>

Python:

cv.getAffineTransform(src, dst) -> retval

Calculates an affine transform from three pairs of the corresponding points.

The function calculates the \(2 \times 3\) matrix of an affine transform so that:

\[\begin{split} \begin{bmatrix} x'_i \\ y'_i \end{bmatrix} = \texttt{map_matrix} \cdot \begin{bmatrix} x_i \\ y_i \\ 1 \end{bmatrix} \end{split}\]

where

\[ dst(i)=(x'_i,y'_i), src(i)=(x_i, y_i), i=0,1,2 \]

See also

warpAffine, transform

Parameters

src — Coordinates of triangle vertices in the source image.
dst — Coordinates of the corresponding triangle vertices in the destination image.

getAffineTransform()#

Mat cv::getAffineTransform(
InputArray src,
InputArray dst )

#include <opencv2/geometry/2d.hpp>

Python:

cv.getAffineTransform(src, dst) -> retval

getClosestEllipsePoints()#

void cv::getClosestEllipsePoints(
const RotatedRect & ellipse_params,
InputArray points,
OutputArray closest_pts )

#include <opencv2/geometry/2d.hpp>

Python:

cv.getClosestEllipsePoints(ellipse_params, points[, closest_pts]) -> closest_pts

Compute for each 2d point the nearest 2d point located on a given ellipse.

The function computes the nearest 2d location on a given ellipse for a vector of 2d points and is based on [57] code. This function can be used to compute for instance the ellipse fitting error.

Note

Input point types are Point2i or Point2f

Parameters

ellipse_params — Ellipse parameters
points — Input 2d points
closest_pts — For each 2d point, their corresponding closest 2d point located on a given ellipse

getPerspectiveTransform()#

Mat cv::getPerspectiveTransform(
const Point2f[] src,
const Point2f[] dst,
int solveMethod = DECOMP_LU )

#include <opencv2/geometry/2d.hpp>

Python:

cv.getPerspectiveTransform(src, dst[, solveMethod]) -> retval

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

getPerspectiveTransform()#

Mat cv::getPerspectiveTransform(
InputArray src,
InputArray dst,
int solveMethod = DECOMP_LU )

#include <opencv2/geometry/2d.hpp>

Python:

cv.getPerspectiveTransform(src, dst[, solveMethod]) -> retval

Calculates a perspective transform from four pairs of the corresponding points.

The function calculates the \(3 \times 3\) matrix of a perspective transform so that:

\[\begin{split} \begin{bmatrix} t_i x'_i \\ t_i y'_i \\ t_i \end{bmatrix} = \texttt{map_matrix} \cdot \begin{bmatrix} x_i \\ y_i \\ 1 \end{bmatrix} \end{split}\]

where

\[ dst(i)=(x'_i,y'_i), src(i)=(x_i, y_i), i=0,1,2,3 \]

Parameters

src — Coordinates of quadrangle vertices in the source image.
dst — Coordinates of the corresponding quadrangle vertices in the destination image.
solveMethod — method passed to cv::solve (DecompTypes)

getRotationMatrix2D()#

Mat cv::getRotationMatrix2D(
Point2f center,
double angle,
double scale )

#include <opencv2/geometry/2d.hpp>

Python:

cv.getRotationMatrix2D(center, angle, scale) -> retval

Calculates an affine matrix of 2D rotation.

The function calculates the following matrix:

\[\begin{split} \begin{bmatrix} \alpha & \beta & (1- \alpha ) \cdot \texttt{center.x} - \beta \cdot \texttt{center.y} \\ - \beta & \alpha & \beta \cdot \texttt{center.x} + (1- \alpha ) \cdot \texttt{center.y} \end{bmatrix} \end{split}\]

where

\[\begin{split} \begin{array}{l} \alpha = \texttt{scale} \cdot \cos \texttt{angle} , \\ \beta = \texttt{scale} \cdot \sin \texttt{angle} \end{array} \end{split}\]

The transformation maps the rotation center to itself. If this is not the target, adjust the shift.

Parameters

center — Center of the rotation in the source image.
angle — Rotation angle in degrees. Positive values mean counter-clockwise rotation (the coordinate origin is assumed to be the top-left corner).
scale — Isotropic scale factor.

Here is the call graph for this function:

getRotationMatrix2D_()#

Matx23d cv::getRotationMatrix2D_(
Point2f center,
double angle,
double scale )

#include <opencv2/geometry/2d.hpp>

See also

getRotationMatrix2D

HuMoments()#

void cv::HuMoments(
const Moments & m,
OutputArray hu )

#include <opencv2/geometry/2d.hpp>

Python:

cv.HuMoments(m[, hu]) -> hu

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

HuMoments()#

void cv::HuMoments(
const Moments & moments,
double[7] hu )

#include <opencv2/geometry/2d.hpp>

Python:

cv.HuMoments(m[, hu]) -> hu

Calculates seven Hu invariants.

The function calculates seven Hu invariants (introduced in [147]; see also https://en.wikipedia.org/wiki/Image_moment) defined as:

\[\begin{split} \begin{array}{l} hu[0]= \eta _{20}+ \eta _{02} \\ hu[1]=( \eta _{20}- \eta _{02})^{2}+4 \eta _{11}^{2} \\ hu[2]=( \eta _{30}-3 \eta _{12})^{2}+ (3 \eta _{21}- \eta _{03})^{2} \\ hu[3]=( \eta _{30}+ \eta _{12})^{2}+ ( \eta _{21}+ \eta _{03})^{2} \\ hu[4]=( \eta _{30}-3 \eta _{12})( \eta _{30}+ \eta _{12})[( \eta _{30}+ \eta _{12})^{2}-3( \eta _{21}+ \eta _{03})^{2}]+(3 \eta _{21}- \eta _{03})( \eta _{21}+ \eta _{03})[3( \eta _{30}+ \eta _{12})^{2}-( \eta _{21}+ \eta _{03})^{2}] \\ hu[5]=( \eta _{20}- \eta _{02})[( \eta _{30}+ \eta _{12})^{2}- ( \eta _{21}+ \eta _{03})^{2}]+4 \eta _{11}( \eta _{30}+ \eta _{12})( \eta _{21}+ \eta _{03}) \\ hu[6]=(3 \eta _{21}- \eta _{03})( \eta _{21}+ \eta _{03})[3( \eta _{30}+ \eta _{12})^{2}-( \eta _{21}+ \eta _{03})^{2}]-( \eta _{30}-3 \eta _{12})( \eta _{21}+ \eta _{03})[3( \eta _{30}+ \eta _{12})^{2}-( \eta _{21}+ \eta _{03})^{2}] \\ \end{array} \end{split}\]

where \(\eta_{ji}\) stands for \(\texttt{Moments::nu}_{ji}\) .

These values are proved to be invariants to the image scale, rotation, and reflection except the seventh one, whose sign is changed by reflection. This invariance is proved with the assumption of infinite image resolution. In case of raster images, the computed Hu invariants for the original and transformed images are a bit different.

See also

matchShapes

Parameters

moments — Input moments computed with moments .
hu — Output Hu invariants.

intersectConvexConvex()#

float cv::intersectConvexConvex(
InputArray p1,
InputArray p2,
OutputArray p12,
bool handleNested = true )

#include <opencv2/geometry/2d.hpp>

Python:

cv.intersectConvexConvex(p1, p2[, p12[, handleNested]]) -> retval, p12

Finds intersection of two convex polygons.

Note

intersectConvexConvex doesn’t confirm that both polygons are convex and will return invalid results if they aren’t.

Parameters

p1 — First polygon
p2 — Second polygon
p12 — Output polygon describing the intersecting area
handleNested — When true, an intersection is found if one of the polygons is fully enclosed in the other. When false, no intersection is found. If the polygons share a side or the vertex of one polygon lies on an edge of the other, they are not considered nested and an intersection will be found regardless of the value of handleNested.

Returns

Area of intersecting polygon. May be negative, if algorithm has not converged, e.g. non-convex input.

invertAffineTransform()#

void cv::invertAffineTransform(
InputArray M,
OutputArray iM )

#include <opencv2/geometry/2d.hpp>

Python:

cv.invertAffineTransform(M[, iM]) -> iM

Inverts an affine transformation.

The function computes an inverse affine transformation represented by \(2 \times 3\) matrix M:

\[\begin{split} \begin{bmatrix} a_{11} & a_{12} & b_1 \\ a_{21} & a_{22} & b_2 \end{bmatrix} \end{split}\]

The result is also a \(2 \times 3\) matrix of the same type as M.

Parameters

M — Original affine transformation.
iM — Output reverse affine transformation.

isContourConvex()#

bool cv::isContourConvex(InputArray contour)

#include <opencv2/geometry/2d.hpp>

Python:

cv.isContourConvex(contour) -> retval

Tests a contour convexity.

The function tests whether the input contour is convex or not. The contour must be simple, that is, without self-intersections. Otherwise, the function output is undefined.

Parameters

contour — Input vector of 2D points, stored in std::vector<> or Mat

isfree()#

bool cv::Subdiv2D::QuadEdge::isfree()

#include <opencv2/geometry/2d.hpp>

isfree()#

bool cv::Subdiv2D::Vertex::isfree()

#include <opencv2/geometry/2d.hpp>

isvirtual()#

bool cv::Subdiv2D::Vertex::isvirtual()

#include <opencv2/geometry/2d.hpp>

matchShapes()#

double cv::matchShapes(
InputArray contour1,
InputArray contour2,
int method,
double parameter )

#include <opencv2/geometry/2d.hpp>

Python:

cv.matchShapes(contour1, contour2, method, parameter) -> retval

Compares two shapes.

The function compares two shapes. All three implemented methods use the Hu invariants (see HuMoments)

Parameters

contour1 — First contour or grayscale image.
contour2 — Second contour or grayscale image.
method — Comparison method, see ShapeMatchModes
parameter — Method-specific parameter (not supported now).

minAreaRect()#

RotatedRect cv::minAreaRect(InputArray points)

#include <opencv2/geometry/2d.hpp>

Python:

cv.minAreaRect(points) -> retval

Finds a rotated rectangle of the minimum area enclosing the input 2D point set.

The function calculates and returns the minimum-area bounding rectangle (possibly rotated) for a specified point set. The angle of rotation represents the angle between the line connecting the starting and ending points (based on the clockwise order with greatest index for the corner with greatest \(y\)) and the horizontal axis. This angle always falls between \([-90, 0)\) because, if the object rotates more than a rect angle, the next edge is used to measure the angle. The starting and ending points change as the object rotates.Developer should keep in mind that the returned RotatedRect can contain negative indices when data is close to the containing Mat element boundary.

Parameters

points — Input vector of 2D points, stored in std::vector<> or Mat

minEnclosingCircle()#

void cv::minEnclosingCircle(
InputArray points,
Point2f & center,
float & radius )

#include <opencv2/geometry/2d.hpp>

Python:

cv.minEnclosingCircle(points) -> center, radius

Finds a circle of the minimum area enclosing a 2D point set.

The function finds the minimal enclosing circle of a 2D point set using an iterative algorithm.

Parameters

points — Input vector of 2D points, stored in std::vector<> or Mat
center — Output center of the circle.
radius — Output radius of the circle.

minEnclosingConvexPolygon()#

double cv::minEnclosingConvexPolygon(
InputArray points,
OutputArray polygon,
int k )

#include <opencv2/geometry/2d.hpp>

Python:

cv.minEnclosingConvexPolygon(points, k[, polygon]) -> retval, polygon

Finds a convex polygon of minimum area enclosing a 2D point set and returns its area.

This function takes a given set of 2D points and finds the enclosing polygon with k vertices and minimal area. It takes the set of points and the parameter k as input and returns the area of the minimal enclosing polygon.

The Implementation is based on a paper by Aggarwal, Chang and Yap [2]. They provide a \(\theta(n²log(n)log(k))\) algorithm for finding the minimal convex polygon with k vertices enclosing a 2D convex polygon with n vertices (k < n). Since the minEnclosingConvexPolygon function takes a 2D point set as input, an additional preprocessing step of computing the convex hull of the 2D point set is required. The complexity of the convexHull function is \(O(n log(n))\) which is lower than \(\theta(n²log(n)log(k))\). Thus the overall complexity of the function is \(O(n²log(n)log(k))\).

Parameters

points — Input vector of 2D points, stored in std::vector<> or Mat
polygon — Output vector of 2D points defining the vertices of the enclosing polygon
k — Number of vertices of the output polygon

minEnclosingTriangle()#

double cv::minEnclosingTriangle(
InputArray points,
OutputArray triangle )

#include <opencv2/geometry/2d.hpp>

Python:

cv.minEnclosingTriangle(points[, triangle]) -> retval, triangle

Finds a triangle of minimum area enclosing a 2D point set and returns its area.

The function finds a triangle of minimum area enclosing the given set of 2D points and returns its area. The output for a given 2D point set is shown in the image below. 2D points are depicted in red* and the enclosing triangle in yellow.

Sample output of the minimum enclosing triangle function

The implementation of the algorithm is based on O’Rourke’s [234] and Klee and Laskowski’s [167] papers. O’Rourke provides a \(\theta(n)\) algorithm for finding the minimal enclosing triangle of a 2D convex polygon with n vertices. Since the minEnclosingTriangle function takes a 2D point set as input an additional preprocessing step of computing the convex hull of the 2D point set is required. The complexity of the convexHull function is \(O(n log(n))\) which is higher than \(\theta(n)\). Thus the overall complexity of the function is \(O(n log(n))\).

Parameters

points — Input vector of 2D points with depth CV_32S or CV_32F, stored in std::vector<> or Mat
triangle — Output vector of three 2D points defining the vertices of the triangle. The depth of the OutputArray must be CV_32F.

moments()#

Moments cv::moments(
InputArray array,
bool binaryImage = false )

#include <opencv2/geometry/2d.hpp>

Python:

cv.moments(array[, binaryImage]) -> retval

Calculates all of the moments up to the third order of a polygon or rasterized shape.

The function computes moments, up to the 3rd order, of a vector shape or a rasterized shape. The results are returned in the structure cv::Moments.

Note

Only applicable to contour moments calculations from Python bindings: Note that the numpy type for the input array should be either np.int32 or np.float32.

For contour-based moments, the zeroth-order moment m00 represents the contour area.

If the input contour is degenerate (for example, a single point or all points are collinear), the area is zero and therefore m00 == 0.

In this case, the centroid coordinates (m10/m00, m01/m00) are undefined and must be handled explicitly by the caller.

A common workaround is to compute the center using cv::boundingRect() or by averaging the input points.

See also

contourArea, arcLength

Parameters

array — Single channel raster image (CV_8U, CV_16U, CV_16S, CV_32F, CV_64F) or an array ( \(1 \times N\) or \(N \times 1\) ) of 2D points (Point or Point2f).
binaryImage — If it is true, all non-zero image pixels are treated as 1’s. The parameter is used for images only.

Returns

moments.

pointPolygonTest()#

double cv::pointPolygonTest(
InputArray contour,
Point2f pt,
bool measureDist )

#include <opencv2/geometry/2d.hpp>

Python:

cv.pointPolygonTest(contour, pt, measureDist) -> retval

Performs a point-in-contour test.

The function determines whether the point is inside a contour, outside, or lies on an edge (or coincides with a vertex). It returns positive (inside), negative (outside), or zero (on an edge) value, correspondingly. When measureDist=false , the return value is +1, -1, and 0, respectively. Otherwise, the return value is a signed distance between the point and the nearest contour edge.

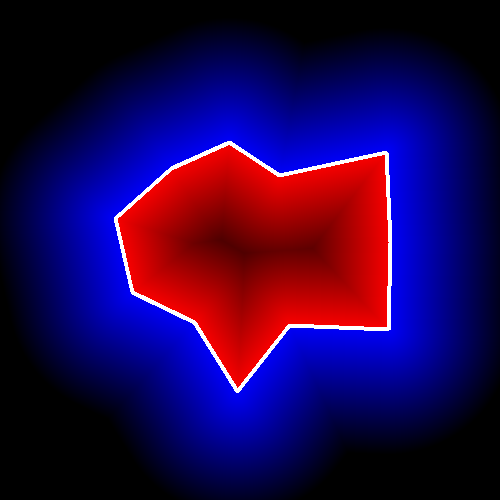

See below a sample output of the function where each image pixel is tested against the contour:

sample output

Parameters

contour — Input contour.
pt — Point tested against the contour.
measureDist — If true, the function estimates the signed distance from the point to the nearest contour edge. Otherwise, the function only checks if the point is inside a contour or not.

rotatedRectangleIntersection()#

int cv::rotatedRectangleIntersection(
const RotatedRect & rect1,
const RotatedRect & rect2,
OutputArray intersectingRegion )

#include <opencv2/geometry/2d.hpp>

Python:

cv.rotatedRectangleIntersection(rect1, rect2[, intersectingRegion]) -> retval, intersectingRegion

Finds out if there is any intersection between two rotated rectangles.

If there is then the vertices of the intersecting region are returned as well.

Below are some examples of intersection configurations. The hatched pattern indicates the intersecting region and the red vertices are returned by the function.

intersection examples

Parameters

rect1 — First rectangle
rect2 — Second rectangle
intersectingRegion — The output array of the vertices of the intersecting region. It returns at most 8 vertices. Stored as std::vector<cv::Point2f> or cv::Mat as Mx1 of type CV_32FC2.

Returns

One of RectanglesIntersectTypes

Variable Documentation#

firstEdge#

int cv::Subdiv2D::Vertex::firstEdge

#include <opencv2/geometry/2d.hpp>

next#

int cv::Subdiv2D::QuadEdge::next

#include <opencv2/geometry/2d.hpp>

pt#

int cv::Subdiv2D::QuadEdge::pt

#include <opencv2/geometry/2d.hpp>

pt#

Point2f cv::Subdiv2D::Vertex::pt

#include <opencv2/geometry/2d.hpp>

type#

int cv::Subdiv2D::Vertex::type

#include <opencv2/geometry/2d.hpp>

Shape analysis and fitting#

Topics#

Detailed Description#

Classes#

Enumerations#

Functions#

Variables#

Enumeration Type Documentation#

enum#

enum#

DistanceTypes#

MSTAlgorithm#

RectanglesIntersectTypes#

Function Documentation#

QuadEdge()#

QuadEdge()#

Vertex()#

Vertex()#

approxPolyDP()#

approxPolyN()#

arcLength()#

boundingRect()#

boxPoints()#

buildMST()#

contourArea()#

convexHull()#

convexityDefects()#

fitEllipse()#

fitEllipseAMS()#

fitEllipseDirect()#

fitLine()#

getAffineTransform()#

getAffineTransform()#

getClosestEllipsePoints()#

getPerspectiveTransform()#

getPerspectiveTransform()#

getRotationMatrix2D()#

getRotationMatrix2D_()#

HuMoments()#

HuMoments()#

intersectConvexConvex()#

invertAffineTransform()#

isContourConvex()#

isfree()#

isfree()#

isvirtual()#

matchShapes()#

minAreaRect()#

minEnclosingCircle()#

minEnclosingConvexPolygon()#

minEnclosingTriangle()#

moments()#

pointPolygonTest()#

rotatedRectangleIntersection()#

Variable Documentation#

firstEdge#

next#

pt#

pt#

type#
