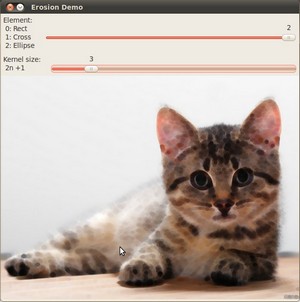

Erosion and Dilation sample code Sample Screenshot-Erosion

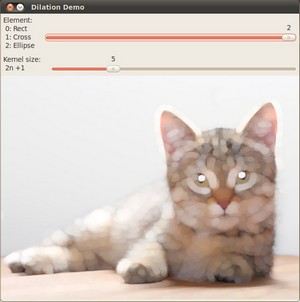

Sample Screenshot-Dilation
Check the corresponding tutorial for more details

  1/**
  2 * @file Morphology_1.cpp
  3 * @brief Erosion and Dilation sample code
  4 * @author OpenCV team
  5 */
  6
  7#include "opencv2/imgproc.hpp"
  8#include "opencv2/highgui.hpp"
  9#include <iostream>
 10
 11using namespace cv;
 12using namespace std;
 13
 14/// Global variables
 15Mat src, erosion_dst, dilation_dst;
 16
 17int erosion_elem = 0;
 18int erosion_size = 0;
 19int dilation_elem = 0;
 20int dilation_size = 0;
 21int const max_elem = 3;
 22int const max_kernel_size = 21;
 23
 24/** Function Headers */
 25void Erosion( int, void* );
 26void Dilation( int, void* );
 27
 28//![main]
 29/**
 30 * @function main
 31 */
 32int main( int argc, char** argv )
 33{
 34  /// Load an image
 35  CommandLineParser parser( argc, argv, "{@input | LinuxLogo.jpg | input image}" );
 36  src = imread( samples::findFile( parser.get<String>( "@input" ) ), IMREAD_COLOR );
 37  if( src.empty() )
 38  {
 39    cout << "Could not open or find the image!\n" << endl;
 40    cout << "Usage: " << argv[0] << " <Input image>" << endl;
 41    return -1;
 42  }
 43
 44  /// Create windows
 45  namedWindow( "Erosion Demo", WINDOW_AUTOSIZE );
 46  namedWindow( "Dilation Demo", WINDOW_AUTOSIZE );
 47  moveWindow( "Dilation Demo", src.cols, 0 );
 48
 49  /// Create Erosion Trackbar
 50  createTrackbar( "Element:\n 0: Rect \n 1: Cross \n 2: Ellipse \n 3: Diamond", "Erosion Demo",
 51          &erosion_elem, max_elem,
 52          Erosion );
 53
 54  createTrackbar( "Kernel size:\n 2n +1", "Erosion Demo",
 55          &erosion_size, max_kernel_size,
 56          Erosion );
 57
 58  /// Create Dilation Trackbar
 59  createTrackbar( "Element:\n 0: Rect \n 1: Cross \n 2: Ellipse \n 3: Diamond", "Dilation Demo",
 60          &dilation_elem, max_elem,
 61          Dilation );
 62
 63  createTrackbar( "Kernel size:\n 2n +1", "Dilation Demo",
 64          &dilation_size, max_kernel_size,
 65          Dilation );
 66
 67  /// Default start
 68  Erosion( 0, 0 );
 69  Dilation( 0, 0 );
 70
 71  waitKey(0);
 72  return 0;
 73}
 74//![main]
 75
 76//![erosion]
 77/**
 78 * @function Erosion
 79 */
 80void Erosion( int, void* )
 81{
 82  int erosion_type = 0;
 83  if( erosion_elem == 0 ){ erosion_type = MORPH_RECT; }
 84  else if( erosion_elem == 1 ){ erosion_type = MORPH_CROSS; }
 85  else if( erosion_elem == 2) { erosion_type = MORPH_ELLIPSE; }
 86  else if( erosion_elem == 3) { erosion_type = MORPH_DIAMOND; }
 87
 88  //![kernel]
 89  Mat element = getStructuringElement( erosion_type,
 90                       Size( 2*erosion_size + 1, 2*erosion_size+1 ),
 91                       Point( erosion_size, erosion_size ) );
 92  //![kernel]
 93
 94  /// Apply the erosion operation
 95  erode( src, erosion_dst, element );
 96  imshow( "Erosion Demo", erosion_dst );
 97}
 98//![erosion]
 99
100//![dilation]
101/**
102 * @function Dilation
103 */
104void Dilation( int, void* )
105{
106  int dilation_type = 0;
107  if( dilation_elem == 0 ){ dilation_type = MORPH_RECT; }
108  else if( dilation_elem == 1 ){ dilation_type = MORPH_CROSS; }
109  else if( dilation_elem == 2) { dilation_type = MORPH_ELLIPSE; }
110  else if( dilation_elem == 3) { dilation_type = MORPH_DIAMOND; }
111
112  Mat element = getStructuringElement( dilation_type,
113                       Size( 2*dilation_size + 1, 2*dilation_size+1 ),
114                       Point( dilation_size, dilation_size ) );
115
116  /// Apply the dilation operation
117  dilate( src, dilation_dst, element );
118  imshow( "Dilation Demo", dilation_dst );
119}
120//![dilation]
