Creating a 3D histogram#
Goal#
In this tutorial you will learn how to
Create your own callback keyboard function for viz window.
Show your 3D histogram in a viz window.
Code#
You can download the code from here .
#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#include <iostream>
using namespace std;
using namespace cv;
#ifdef HAVE_OPENCV_VIZ
#include <opencv2/viz.hpp>
const String keys =
"{Aide h usage ? help | | print this message }"
"{@arg1 | | Full path to color imag (3 channels)}"
;
struct Histo3DData {
Mat histogram;
int seuil;
double threshold;
Ptr<viz::Viz3d> fen3D;
int nbWidget;
bool status;
double maxH;
int code;
};
void DrawHistogram3D(Histo3DData &);
void AddSlidebar(String sliderName, String windowName, int sliderMin, int sliderMax, int valeurDefaut, int *sliderVal, void(*f)(int, void *), void *r);
void UpdateThreshold(int , void * r);
void KeyboardViz3d(const viz::KeyboardEvent &w, void *t);
void DrawHistogram3D(Histo3DData &h)
{
int planSize = (int)h.histogram.step1(0);
int cols = (int)h.histogram.step1(1);
int rows = (int)planSize / cols;
int plans = (int)h.histogram.total() / planSize;
h.fen3D->removeAllWidgets();
h.nbWidget=0;
if (h.nbWidget==0)
h.fen3D->showWidget("Axis", viz::WCoordinateSystem(10));
for (int k = 0; k < plans; k++)
{
for (int i = 0; i < rows; i++)
{
for (int j = 0; j < cols; j++)
{
double x = h.histogram.at<float>(k, i, j);
if (x >= h.threshold)
{
double r=std::max(x/h.maxH,0.1);
viz::WCube s(Point3d(k - r / 2, i - r / 2, j - r / 2), Point3d(k + r / 2, i + r / 2, j + r / 2), false, viz::Color(j / double(plans) * 255, i / double(rows) * 255, k / double(cols) * 255));
h.fen3D->showWidget(format("I3d%d", h.nbWidget++), s);
}
}
}
}
h.status = false;
}
void KeyboardViz3d(const viz::KeyboardEvent &w, void *t)
{
Histo3DData *x=(Histo3DData *)t;
if (w.action)
cout << "you pressed "<< w.symbol<< " in viz window "<<x->fen3D->getWindowName()<<"\n";
x->code= w.code;
switch (w.code) {
case '/':
x->status=true;
x->threshold *= 0.9;
break;
case '*':
x->status = true;
x->threshold *= 1.1;
break;
}
if (x->status)
{
cout << x->threshold << "\n";
DrawHistogram3D(*x);
}
}
void AddSlidebar(String sliderName, String windowName, int sliderMin, int sliderMax, int defaultSlider, int *sliderVal, void(*f)(int, void *), void *r)
{
createTrackbar(sliderName, windowName, sliderVal, 1, f, r);
setTrackbarMin(sliderName, windowName, sliderMin);
setTrackbarMax(sliderName, windowName, sliderMax);
setTrackbarPos(sliderName, windowName, defaultSlider);
}
void UpdateThreshold(int , void * r)
{
Histo3DData *h = (Histo3DData *)r;
h->status=true;
h->threshold = h->seuil/1000000.0;
cout<<"Widget : "<<h->nbWidget<<","<< h->threshold<<"\n";
}
int main (int argc,char **argv)
{
CommandLineParser parser(argc, argv, keys);
if (parser.has("help"))
{
parser.printMessage();
return 0;
}
String nomFic = parser.get<String>(0);
Mat img;
if (nomFic.length() != 0)
{
img = imread(nomFic, IMREAD_COLOR);
if (img.empty())
{
cout << "Image does not exist!";
return 0;
}
}
else
{
img = Mat(512,512,CV_8UC3);
parser.printMessage();
RNG r;
r.fill(img(Rect(0, 0, 256, 256)), RNG::NORMAL, Vec3b(60, 40, 50), Vec3b(10, 5, 20));
r.fill(img(Rect(256, 0, 256, 256)), RNG::NORMAL, Vec3b(160, 10, 50), Vec3b(20, 5, 10));
r.fill(img(Rect(0, 256, 256, 256)), RNG::NORMAL, Vec3b(90, 100, 50), Vec3b(10, 20, 20));
r.fill(img(Rect(256, 256, 256, 256)), RNG::NORMAL, Vec3b(100, 10, 150), Vec3b(10, 5, 40));
}
Histo3DData h;
h.status=true;
h.seuil=90;
h.threshold= h.seuil/1000000.0;
float hRange[] = { 0, 256 };
const float* etendu[] = { hRange, hRange,hRange };
int hBins = 32;
int histSize[] = { hBins, hBins , hBins };
int channel[] = { 2, 1,0 };
calcHist(&img, 1, channel, Mat(), h.histogram, 3, histSize, etendu, true, false);
normalize(h.histogram, h.histogram, 100.0/(img.total()), 0, NORM_MINMAX, -1, Mat());
minMaxIdx(h.histogram,NULL,&h.maxH,NULL,NULL);
namedWindow("Image");
imshow("Image",img);
AddSlidebar("threshold","Image",0,100,h.seuil,&h.seuil, UpdateThreshold,&h);
waitKey(30);
h.fen3D = makePtr<viz::Viz3d>("3D Histogram");
h.nbWidget=0;
h.fen3D->registerKeyboardCallback(KeyboardViz3d,&h);
DrawHistogram3D(h);
while (h.code!=27)
{
h.fen3D->spinOnce(1);
if (h.status)
DrawHistogram3D(h);
if (h.code!=27)
h.code= waitKey(30);
}
return 0;
}
#else
int main(int argc, char **argv)
{
cout << " you need VIZ module\n";
return 0;
}
#endif
Explanation#
Here is the general structure of the program:
You can give full path to an image in command line
CommandLineParser parser(argc, argv, keys); if (parser.has("help")) { parser.printMessage(); return 0; } String nomFic = parser.get<String>(0); Mat img; if (nomFic.length() != 0) { img = imread(nomFic, IMREAD_COLOR); if (img.empty()) { cout << "Image does not exist!"; return 0; } }
or without path, a synthetic image is generated with pixel values are a gaussian distribution [cv::RNG::fill](#cv::RNG::fill) center(60+/-10,40+/-5,50+/-20) in first quadrant, (160+/-20,10+/-5,50+/-10) in second quadrant, (90+/-10,100+/-20,50+/-20) in third quadrant, (100+/-10,10+/-5,150+/-40) in last quadrant.
else { img = Mat(512,512,CV_8UC3); parser.printMessage(); RNG r; r.fill(img(Rect(0, 0, 256, 256)), RNG::NORMAL, Vec3b(60, 40, 50), Vec3b(10, 5, 20)); r.fill(img(Rect(256, 0, 256, 256)), RNG::NORMAL, Vec3b(160, 10, 50), Vec3b(20, 5, 10)); r.fill(img(Rect(0, 256, 256, 256)), RNG::NORMAL, Vec3b(90, 100, 50), Vec3b(10, 20, 20)); r.fill(img(Rect(256, 256, 256, 256)), RNG::NORMAL, Vec3b(100, 10, 150), Vec3b(10, 5, 40)); }
Image tridimensional histogram is calculated using opencv cv::calcHist and cv::normalize between 0 and 100.
Histo3DData h; h.status=true; h.seuil=90; h.threshold= h.seuil/1000000.0; float hRange[] = { 0, 256 }; const float* etendu[] = { hRange, hRange,hRange }; int hBins = 32; int histSize[] = { hBins, hBins , hBins }; int channel[] = { 2, 1,0 }; calcHist(&img, 1, channel, Mat(), h.histogram, 3, histSize, etendu, true, false); normalize(h.histogram, h.histogram, 100.0/(img.total()), 0, NORM_MINMAX, -1, Mat()); minMaxIdx(h.histogram,NULL,&h.maxH,NULL,NULL);
channel are 2, 1 and 0 to synchronise color with Viz axis color in objetc cv::viz::WCoordinateSystem.
A slidebar is inserted in image window. Init slidebar value is 90, it means that only histogram cell greater than 9/100000.0 (23 pixels for an 512X512 pixels) will be display.
namedWindow("Image"); imshow("Image",img); AddSlidebar("threshold","Image",0,100,h.seuil,&h.seuil, UpdateThreshold,&h); waitKey(30);
We are ready to open a viz window with a callback function to capture keyboard event in viz window. Using cv::viz::Viz3d::spinOnce enable keyboard event to be capture in cv::imshow window too.
The function DrawHistogram3D processes histogram Mat to display it in a Viz window. Number of plan, row and column in three dimensional Mat can be found using this code :
int planSize = (int)h.histogram.step1(0); int cols = (int)h.histogram.step1(1); int rows = (int)planSize / cols; int plans = (int)h.histogram.total() / planSize; h.fen3D->removeAllWidgets(); h.nbWidget=0; if (h.nbWidget==0) h.fen3D->showWidget("Axis", viz::WCoordinateSystem(10));
To get histogram value at a specific location we use [cv::Mat::at](#cv::Mat::at)(int i0,int i1, int i2) method with three arguments k, i and j where k is plane number, i row number and j column number.
for (int k = 0; k < plans; k++) { for (int i = 0; i < rows; i++) { for (int j = 0; j < cols; j++) { double x = h.histogram.at<float>(k, i, j); if (x >= h.threshold) { double r=std::max(x/h.maxH,0.1); viz::WCube s(Point3d(k - r / 2, i - r / 2, j - r / 2), Point3d(k + r / 2, i + r / 2, j + r / 2), false, viz::Color(j / double(plans) * 255, i / double(rows) * 255, k / double(cols) * 255)); h.fen3D->showWidget(format("I3d%d", h.nbWidget++), s); } } } }
Callback function Principle are as mouse callback function. Key code pressed is in field code of class cv::viz::KeyboardEvent.
void KeyboardViz3d(const viz::KeyboardEvent &w, void *t) { Histo3DData *x=(Histo3DData *)t; if (w.action) cout << "you pressed "<< w.symbol<< " in viz window "<<x->fen3D->getWindowName()<<"\n"; x->code= w.code; switch (w.code) { case '/': x->status=true; x->threshold *= 0.9; break; case '*': x->status = true; x->threshold *= 1.1; break; } if (x->status) { cout << x->threshold << "\n"; DrawHistogram3D(*x); } }
Results#

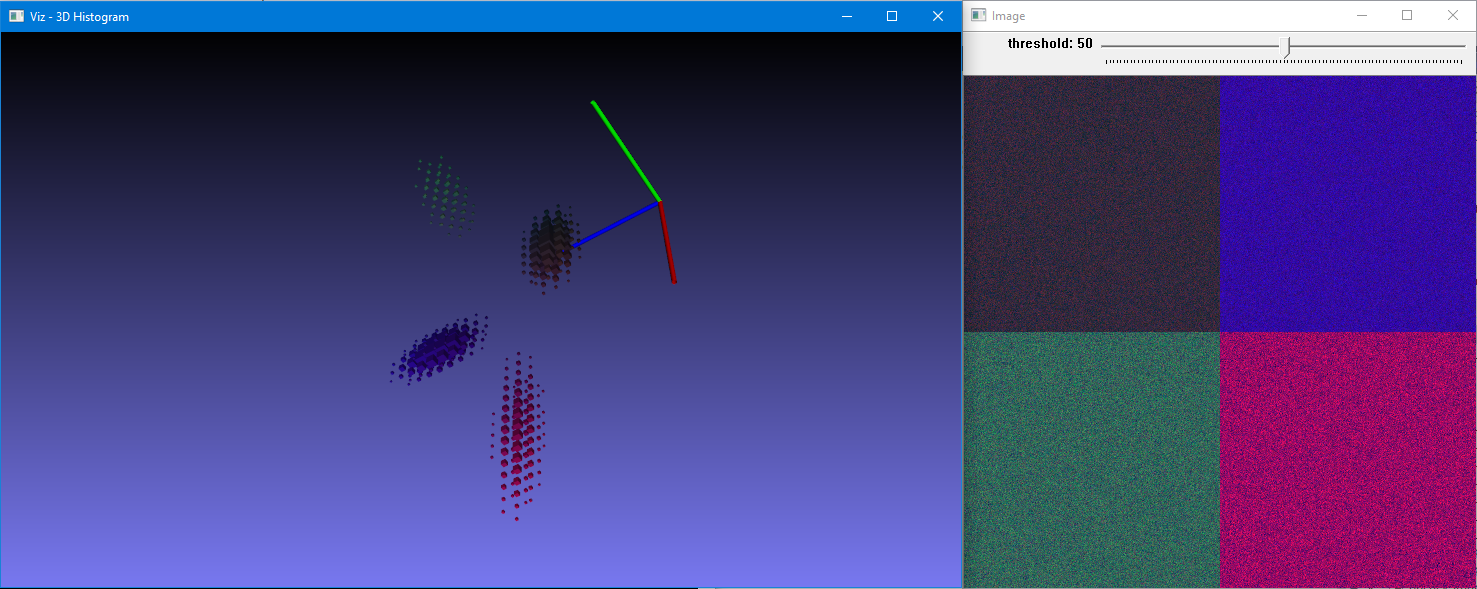

Here is the result of the program with no argument and threshold equal to 50.
