Making your own linear filters!#


Original author	Ana Huamán
Compatibility	OpenCV >= 3.0

Goal#

In this tutorial you will learn how to:

Use the OpenCV function filter2D() to create your own linear filters.

Theory#

Note

The explanation below belongs to the book Learning OpenCV by Bradski and Kaehler.

Correlation#

In a very general sense, correlation is an operation between every part of an image and an operator (kernel).

What is a kernel?#

A kernel is essentially a fixed size array of numerical coefficients along with an anchor point in that array, which is typically located at the center.

How does correlation with a kernel work?#

Assume you want to know the resulting value of a particular location in the image. The value of the correlation is calculated in the following way:

Place the kernel anchor on top of a determined pixel, with the rest of the kernel overlaying the corresponding local pixels in the image.
Multiply the kernel coefficients by the corresponding image pixel values and sum the result.
Place the result to the location of the anchor in the input image.
Repeat the process for all pixels by scanning the kernel over the entire image.

Expressing the procedure above in the form of an equation we would have:

\[ H(x,y) = \sum_{i=0}^{M_{i} - 1} \sum_{j=0}^{M_{j}-1} I(x+i - a_{i}, y + j - a_{j})K(i,j) \]

Fortunately, OpenCV provides you with the function filter2D() so you do not have to code all these operations.

What does this program do?#

Loads an image
Performs a normalized box filter. For instance, for a kernel of size \(size = 3\), the kernel would be:

\[\begin{split}K = \dfrac{1}{3 \cdot 3} \begin{bmatrix} 1 & 1 & 1 \\ 1 & 1 & 1 \\ 1 & 1 & 1 \end{bmatrix}\end{split}\]

The program will perform the filter operation with kernels of sizes 3, 5, 7, 9 and 11.

The filter output (with each kernel) will be shown during 500 milliseconds

Code#

The tutorial code’s is shown in the lines below.

C++

You can also download it from here

#include "opencv2/imgproc.hpp"
#include "opencv2/imgcodecs.hpp"
#include "opencv2/highgui.hpp"

using namespace cv;

int main ( int argc, char** argv )
{
    // Declare variables
    Mat src, dst;

    Mat kernel;
    Point anchor;
    double delta;
    int ddepth;
    int kernel_size;
    const char* window_name = "filter2D Demo";

    const char* imageName = argc >=2 ? argv[1] : "lena.jpg";

    // Loads an image
    src = imread( samples::findFile( imageName ), IMREAD_COLOR ); // Load an image

    if( src.empty() )
    {
        printf(" Error opening image\n");
        printf(" Program Arguments: [image_name -- default lena.jpg] \n");
        return EXIT_FAILURE;
    }

    // Initialize arguments for the filter
    anchor = Point( -1, -1 );
    delta = 0;
    ddepth = -1;

    // Loop - Will filter the image with different kernel sizes each 0.5 seconds
    int ind = 0;
    for(;;)
    {
        // Update kernel size for a normalized box filter
        kernel_size = 3 + 2*( ind%5 );
        kernel = Mat::ones( kernel_size, kernel_size, CV_32F )/ (float)(kernel_size*kernel_size);

        // Apply filter
        filter2D(src, dst, ddepth , kernel, anchor, delta, BORDER_DEFAULT );
        imshow( window_name, dst );

        char c = (char)waitKey(500);
        // Press 'ESC' to exit the program
        if( c == 27 )
        { break; }

        ind++;
    }

    return EXIT_SUCCESS;
}

Java

You can also download it from here

import org.opencv.core.*;
import org.opencv.core.Point;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

class Filter2D_DemoRun {

    public void run(String[] args) {
        // Declare variables
        Mat src, dst = new Mat();

        Mat kernel = new Mat();
        Point anchor;
        double delta;
        int ddepth;
        int kernel_size;
        String window_name = "filter2D Demo";

        String imageName = ((args.length > 0) ? args[0] : "../data/lena.jpg");

        // Load an image
        src = Imgcodecs.imread(imageName, Imgcodecs.IMREAD_COLOR);

        // Check if image is loaded fine
        if( src.empty() ) {
            System.out.println("Error opening image!");
            System.out.println("Program Arguments: [image_name -- default ../data/lena.jpg] \n");
            System.exit(-1);
        }

        // Initialize arguments for the filter
        anchor = new Point( -1, -1);
        delta = 0.0;
        ddepth = -1;

        // Loop - Will filter the image with different kernel sizes each 0.5 seconds
        int ind = 0;
        while( true )
        {
            // Update kernel size for a normalized box filter
            kernel_size = 3 + 2*( ind%5 );
            Mat ones = Mat.ones( kernel_size, kernel_size, CvType.CV_32F );
            Core.multiply(ones, new Scalar(1/(double)(kernel_size*kernel_size)), kernel);

            // Apply filter
            Imgproc.filter2D(src, dst, ddepth , kernel, anchor, delta, Core.BORDER_DEFAULT );
            HighGui.imshow( window_name, dst );

            int c = HighGui.waitKey(500);
            // Press 'ESC' to exit the program
            if( c == 27 )
            { break; }

            ind++;
        }

        System.exit(0);
    }
}

public class Filter2D_Demo {
    public static void main(String[] args) {
        // Load the native library.
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);
        new Filter2D_DemoRun().run(args);
    }
}

Python

You can also download it from here

"""
@file filter2D.py
@brief Sample code that shows how to implement your own linear filters by using filter2D function
"""
import sys
import cv2 as cv
import numpy as np

def main(argv):
    window_name = 'filter2D Demo'

    imageName = argv[0] if len(argv) > 0 else 'lena.jpg'

    # Loads an image
    src = cv.imread(cv.samples.findFile(imageName), cv.IMREAD_COLOR)

    # Check if image is loaded fine
    if src is None:
        print ('Error opening image!')
        print ('Usage: filter2D.py [image_name -- default lena.jpg] \n')
        return -1
    # Initialize ddepth argument for the filter
    ddepth = -1
    # Loop - Will filter the image with different kernel sizes each 0.5 seconds
    ind = 0
    while True:
        # Update kernel size for a normalized box filter
        kernel_size = 3 + 2 * (ind % 5)
        kernel = np.ones((kernel_size, kernel_size), dtype=np.float32)
        kernel /= (kernel_size * kernel_size)
        # Apply filter
        dst = cv.filter2D(src, ddepth, kernel)
        cv.imshow(window_name, dst)

        c = cv.waitKey(500)
        if c == 27:
            break

        ind += 1

    return 0

if __name__ == "__main__":
    main(sys.argv[1:])

Results#

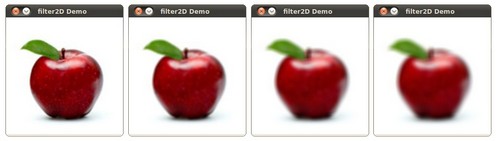

After compiling the code above, you can execute it giving as argument the path of an image. The result should be a window that shows an image blurred by a normalized filter. Each 0.5 seconds the kernel size should change, as can be seen in the series of snapshots below:
