Smoothing Images#

Original author

Ana Huamán

Compatibility

OpenCV >= 3.0

Goal#

In this tutorial you will learn how to apply diverse linear filters to smooth images using OpenCV functions such as:

  • blur()

  • GaussianBlur()

  • medianBlur()

  • bilateralFilter()

Theory#

Note

The explanation below belongs to the book Computer Vision: Algorithms and Applications by Richard Szeliski and to LearningOpenCV

  • Smoothing, also called blurring, is a simple and frequently used image processing operation.

  • There are many reasons for smoothing. In this tutorial we will focus on smoothing in order to reduce noise (other uses will be seen in the following tutorials).

  • To perform a smoothing operation we will apply a filter to our image. The most common type of filters are linear, in which an output pixel’s value (i.e. \(g(i,j)\)) is determined as a weighted sum of input pixel values (i.e. \(f(i+k,j+l)\)) :

    \[ g(i,j) = \sum_{k,l} f(i+k, j+l) h(k,l) \]

    \(h(k,l)\) is called the kernel, which is nothing more than the coefficients of the filter.

    It helps to visualize a filter as a window of coefficients sliding across the image.

  • There are many kind of filters, here we will mention the most used:

Normalized Box Filter#

  • This filter is the simplest of all! Each output pixel is the mean of its kernel neighbors ( all of them contribute with equal weights)

  • The kernel is below:

    \[\begin{split}K = \dfrac{1}{K_{width} \cdot K_{height}} \begin{bmatrix} 1 & 1 & 1 & ... & 1 \\ 1 & 1 & 1 & ... & 1 \\ . & . & . & ... & 1 \\ . & . & . & ... & 1 \\ 1 & 1 & 1 & ... & 1 \end{bmatrix}\end{split}\]

Gaussian Filter#

  • Probably the most useful filter (although not the fastest). Gaussian filtering is done by convolving each point in the input array with a Gaussian kernel and then summing them all to produce the output array.

  • Just to make the picture clearer, remember how a 1D Gaussian kernel look like?

    Assuming that an image is 1D, you can notice that the pixel located in the middle would have the biggest weight. The weight of its neighbors decreases as the spatial distance between them and the center pixel increases.

    Note

    Remember that a 2D Gaussian can be represented as :

    \[ G_{0}(x, y) = A e^{ \dfrac{ -(x - \mu_{x})^{2} }{ 2\sigma^{2}_{x} } + \dfrac{ -(y - \mu_{y})^{2} }{ 2\sigma^{2}_{y} } } \]

    where \(\mu\) is the mean (the peak) and \(\sigma^{2}\) represents the variance (per each of the variables \(x\) and \(y\))

Median Filter#

The median filter run through each element of the signal (in this case the image) and replace each pixel with the median of its neighboring pixels (located in a square neighborhood around the evaluated pixel).

Bilateral Filter#

  • So far, we have explained some filters which main goal is to smooth an input image. However, sometimes the filters do not only dissolve the noise, but also smooth away the edges. To avoid this (at certain extent at least), we can use a bilateral filter.

  • In an analogous way as the Gaussian filter, the bilateral filter also considers the neighboring pixels with weights assigned to each of them. These weights have two components, the first of which is the same weighting used by the Gaussian filter. The second component takes into account the difference in intensity between the neighboring pixels and the evaluated one.

  • For a more detailed explanation you can check this link

Code#

  • What does this program do?

    • Loads an image

    • Applies 4 different kinds of filters (explained in Theory) and show the filtered images sequentially

  • Downloadable code: Click here

  • Code at glance:

    #include <iostream>
#include "opencv2/imgproc.hpp"
#include "opencv2/imgcodecs.hpp"
#include "opencv2/highgui.hpp"

using namespace std;
using namespace cv;

/// Global Variables
int DELAY_CAPTION = 1500;
int DELAY_BLUR = 100;
int MAX_KERNEL_LENGTH = 31;

Mat src; Mat dst;
char window_name[] = "Smoothing Demo";

/// Function headers
int display_caption( const char* caption );
int display_dst( int delay );

int main( int argc, char ** argv )
{
    namedWindow( window_name, WINDOW_AUTOSIZE );

    /// Load the source image
    const char* filename = argc >=2 ? argv[1] : "lena.jpg";

    src = imread( samples::findFile( filename ), IMREAD_COLOR );
    if (src.empty())
    {
        printf(" Error opening image\n");
        printf(" Usage:\n %s [image_name-- default lena.jpg] \n", argv[0]);
        return EXIT_FAILURE;
    }

    if( display_caption( "Original Image" ) != 0 )
    {
        return 0;
    }

    dst = src.clone();
    if( display_dst( DELAY_CAPTION ) != 0 )
    {
        return 0;
    }

    /// Applying Homogeneous blur
    if( display_caption( "Homogeneous Blur" ) != 0 )
    {
        return 0;
    }

    for ( int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2 )
    {
        blur( src, dst, Size( i, i ), Point(-1,-1) );
        if( display_dst( DELAY_BLUR ) != 0 )
        {
            return 0;
        }
    }

    /// Applying Gaussian blur
    if( display_caption( "Gaussian Blur" ) != 0 )
    {
        return 0;
    }

    for ( int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2 )
    {
        GaussianBlur( src, dst, Size( i, i ), 0, 0 );
        if( display_dst( DELAY_BLUR ) != 0 )
        {
            return 0;
        }
    }

    /// Applying Median blur
    if( display_caption( "Median Blur" ) != 0 )
    {
        return 0;
    }

    for ( int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2 )
    {
        medianBlur ( src, dst, i );
        if( display_dst( DELAY_BLUR ) != 0 )
        {
            return 0;
        }
    }

    /// Applying Bilateral Filter
    if( display_caption( "Bilateral Blur" ) != 0 )
    {
        return 0;
    }

    for ( int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2 )
    {
        bilateralFilter ( src, dst, i, i*2, i/2 );
        if( display_dst( DELAY_BLUR ) != 0 )
        {
            return 0;
        }
    }

    /// Done
    display_caption( "Done!" );

    return 0;
}

int display_caption( const char* caption )
{
    dst = Mat::zeros( src.size(), src.type() );
    putText( dst, caption,
             Point( src.cols/4, src.rows/2),
             FONT_HERSHEY_COMPLEX, 1, Scalar(255, 255, 255) );

    return display_dst(DELAY_CAPTION);
}

int display_dst( int delay )
{
    imshow( window_name, dst );
    int c = waitKey ( delay );
    if( c >= 0 ) { return -1; }
    return 0;
}

  • Downloadable code: Click here

  • Code at glance:

    import org.opencv.core.*;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

class SmoothingRun {

    ///  Global Variables
    int DELAY_CAPTION = 1500;
    int DELAY_BLUR = 100;
    int MAX_KERNEL_LENGTH = 31;

    Mat src = new Mat(), dst = new Mat();
    String windowName = "Filter Demo 1";

    public void run(String[] args) {

        String filename = ((args.length > 0) ? args[0] : "../data/lena.jpg");

        src = Imgcodecs.imread(filename, Imgcodecs.IMREAD_COLOR);
        if( src.empty() ) {
            System.out.println("Error opening image");
            System.out.println("Usage: ./Smoothing [image_name -- default ../data/lena.jpg] \n");
            System.exit(-1);
        }

        if( displayCaption( "Original Image" ) != 0 ) { System.exit(0); }

        dst = src.clone();
        if( displayDst( DELAY_CAPTION ) != 0 ) { System.exit(0); }

        /// Applying Homogeneous blur
        if( displayCaption( "Homogeneous Blur" ) != 0 ) { System.exit(0); }

        for (int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2) {
            Imgproc.blur(src, dst, new Size(i, i), new Point(-1, -1));
            displayDst(DELAY_BLUR);
        }

        /// Applying Gaussian blur
        if( displayCaption( "Gaussian Blur" ) != 0 ) { System.exit(0); }

        for (int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2) {
            Imgproc.GaussianBlur(src, dst, new Size(i, i), 0, 0);
            displayDst(DELAY_BLUR);
        }

        /// Applying Median blur
        if( displayCaption( "Median Blur" ) != 0 ) { System.exit(0); }

        for (int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2) {
            Imgproc.medianBlur(src, dst, i);
            displayDst(DELAY_BLUR);
        }

        /// Applying Bilateral Filter
        if( displayCaption( "Bilateral Blur" ) != 0 ) { System.exit(0); }

        for (int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2) {
            Imgproc.bilateralFilter(src, dst, i, i * 2, i / 2);
            displayDst(DELAY_BLUR);
        }

        /// Done
        displayCaption( "Done!" );

        System.exit(0);
    }

    int displayCaption(String caption) {
        dst = Mat.zeros(src.size(), src.type());
        Imgproc.putText(dst, caption,
                new Point(src.cols() / 4, src.rows() / 2),
                Imgproc.FONT_HERSHEY_COMPLEX, 1, new Scalar(255, 255, 255));

        return displayDst(DELAY_CAPTION);
    }

    int displayDst(int delay) {
        HighGui.imshow( windowName, dst );
        int c = HighGui.waitKey( delay );
        if (c >= 0) { return -1; }
        return 0;
    }
}

public class Smoothing {
    public static void main(String[] args) {
        // Load the native library.
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);
        new SmoothingRun().run(args);
    }
}

  • Downloadable code: Click here

  • Code at glance:

    import sys
import cv2 as cv
import numpy as np

#  Global Variables

DELAY_CAPTION = 1500
DELAY_BLUR = 100
MAX_KERNEL_LENGTH = 31

src = None
dst = None
window_name = 'Smoothing Demo'

def main(argv):
    cv.namedWindow(window_name, cv.WINDOW_AUTOSIZE)

    # Load the source image
    imageName = argv[0] if len(argv) > 0 else 'lena.jpg'

    global src
    src = cv.imread(cv.samples.findFile(imageName))
    if src is None:
        print ('Error opening image')
        print ('Usage: smoothing.py [image_name -- default ../data/lena.jpg] \n')
        return -1

    if display_caption('Original Image') != 0:
        return 0

    global dst
    dst = np.copy(src)
    if display_dst(DELAY_CAPTION) != 0:
        return 0

    # Applying Homogeneous blur
    if display_caption('Homogeneous Blur') != 0:
        return 0

    for i in range(1, MAX_KERNEL_LENGTH, 2):
        dst = cv.blur(src, (i, i))
        if display_dst(DELAY_BLUR) != 0:
            return 0

    # Applying Gaussian blur
    if display_caption('Gaussian Blur') != 0:
        return 0

    for i in range(1, MAX_KERNEL_LENGTH, 2):
        dst = cv.GaussianBlur(src, (i, i), 0)
        if display_dst(DELAY_BLUR) != 0:
            return 0

    # Applying Median blur
    if display_caption('Median Blur') != 0:
        return 0

    for i in range(1, MAX_KERNEL_LENGTH, 2):
        dst = cv.medianBlur(src, i)
        if display_dst(DELAY_BLUR) != 0:
            return 0

    # Applying Bilateral Filter
    if display_caption('Bilateral Blur') != 0:
        return 0

    # Remember, bilateral is a bit slow, so as value go higher, it takes long time
    for i in range(1, MAX_KERNEL_LENGTH, 2):
        dst = cv.bilateralFilter(src, i, i * 2, i / 2)
        if display_dst(DELAY_BLUR) != 0:
            return 0

    #  Done
    display_caption('Done!')

    return 0

def display_caption(caption):
    global dst
    dst = np.zeros(src.shape, src.dtype)
    rows, cols, _ch = src.shape
    cv.putText(dst, caption,
                (int(cols / 4), int(rows / 2)),
                cv.FONT_HERSHEY_COMPLEX, 1, (255, 255, 255))

    return display_dst(DELAY_CAPTION)

def display_dst(delay):
    cv.imshow(window_name, dst)
    c = cv.waitKey(delay)
    if c >= 0 : return -1
    return 0

if __name__ == "__main__":
    main(sys.argv[1:])

Explanation#

Let’s check the OpenCV functions that involve only the smoothing procedure, since the rest is already known by now.

Normalized Block Filter:#

  • OpenCV offers the function blur() to perform smoothing with this filter. We specify 4 arguments (more details, check the Reference):

    • src: Source image

    • dst: Destination image

    • Size( w, h ): Defines the size of the kernel to be used ( of width w pixels and height h pixels)

    • Point(-1, -1): Indicates where the anchor point (the pixel evaluated) is located with respect to the neighborhood. If there is a negative value, then the center of the kernel is considered the anchor point.

for ( int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2 )
{
    blur( src, dst, Size( i, i ), Point(-1,-1) );
    if( display_dst( DELAY_BLUR ) != 0 )
    {
        return 0;
    }
}

for (int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2) {
    Imgproc.blur(src, dst, new Size(i, i), new Point(-1, -1));
    displayDst(DELAY_BLUR);
}

for i in range(1, MAX_KERNEL_LENGTH, 2):
    dst = cv.blur(src, (i, i))
    if display_dst(DELAY_BLUR) != 0:
        return 0

Gaussian Filter:#

  • It is performed by the function GaussianBlur() : Here we use 4 arguments (more details, check the OpenCV reference):

    • src: Source image

    • dst: Destination image

    • Size(w, h): The size of the kernel to be used (the neighbors to be considered). \(w\) and \(h\) have to be odd and positive numbers otherwise the size will be calculated using the \(\sigma_{x}\) and \(\sigma_{y}\) arguments.

    • \(\sigma_{x}\): The standard deviation in x. Writing \(0\) implies that \(\sigma_{x}\) is calculated using kernel size.

    • \(\sigma_{y}\): The standard deviation in y. Writing \(0\) implies that \(\sigma_{y}\) is calculated using kernel size.

for ( int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2 )
{
    GaussianBlur( src, dst, Size( i, i ), 0, 0 );
    if( display_dst( DELAY_BLUR ) != 0 )
    {
        return 0;
    }
}

for (int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2) {
    Imgproc.GaussianBlur(src, dst, new Size(i, i), 0, 0);
    displayDst(DELAY_BLUR);
}

for i in range(1, MAX_KERNEL_LENGTH, 2):
    dst = cv.GaussianBlur(src, (i, i), 0)
    if display_dst(DELAY_BLUR) != 0:
        return 0

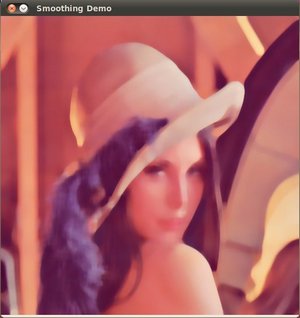

Median Filter:#

  • This filter is provided by the medianBlur() function: We use three arguments:

    • src: Source image

    • dst: Destination image, must be the same type as src

    • i: Size of the kernel (only one because we use a square window). Must be odd.

for ( int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2 )
{
    medianBlur ( src, dst, i );
    if( display_dst( DELAY_BLUR ) != 0 )
    {
        return 0;
    }
}

for (int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2) {
    Imgproc.medianBlur(src, dst, i);
    displayDst(DELAY_BLUR);
}

for i in range(1, MAX_KERNEL_LENGTH, 2):
    dst = cv.medianBlur(src, i)
    if display_dst(DELAY_BLUR) != 0:
        return 0

Bilateral Filter#

  • Provided by OpenCV function bilateralFilter() We use 5 arguments:

    • src: Source image

    • dst: Destination image

    • d: The diameter of each pixel neighborhood.

    • \(\sigma_{Color}\): Standard deviation in the color space.

    • \(\sigma_{Space}\): Standard deviation in the coordinate space (in pixel terms)

for ( int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2 )
{
    bilateralFilter ( src, dst, i, i*2, i/2 );
    if( display_dst( DELAY_BLUR ) != 0 )
    {
        return 0;
    }
}

for (int i = 1; i < MAX_KERNEL_LENGTH; i = i + 2) {
    Imgproc.bilateralFilter(src, dst, i, i * 2, i / 2);
    displayDst(DELAY_BLUR);
}

# Remember, bilateral is a bit slow, so as value go higher, it takes long time
for i in range(1, MAX_KERNEL_LENGTH, 2):
    dst = cv.bilateralFilter(src, i, i * 2, i / 2)
    if display_dst(DELAY_BLUR) != 0:
        return 0

Results#

  • The code opens an image (in this case lena.jpg) and display it under the effects of the 4 filters explained.

  • Here is a snapshot of the image smoothed using medianBlur:
