Discrete Fourier Transform#

Original author

Bernát Gábor

Compatibility

OpenCV >= 3.0

Goal#

We’ll seek answers for the following questions:

  • What is a Fourier transform and why use it?

  • How to do it in OpenCV?

  • Usage of functions such as: copyMakeBorder() , merge() , dft() , getOptimalDFTSize() , log() and normalize() .

Source code#

You can download this from here or find it in the samples/cpp/tutorial_code/core/discrete_fourier_transform/discrete_fourier_transform.cpp of the OpenCV source code library.

You can download this from here or find it in the samples/java/tutorial_code/core/discrete_fourier_transform/DiscreteFourierTransform.java of the OpenCV source code library.

You can download this from here or find it in the samples/python/tutorial_code/core/discrete_fourier_transform/discrete_fourier_transform.py of the OpenCV source code library.

Here’s a sample usage of dft() :

#include "opencv2/core.hpp"
#include "opencv2/imgproc.hpp"
#include "opencv2/imgcodecs.hpp"
#include "opencv2/highgui.hpp"

#include <iostream>

using namespace cv;
using namespace std;

static void help(char ** argv)
{
    cout << endl
        <<  "This program demonstrated the use of the discrete Fourier transform (DFT). " << endl
        <<  "The dft of an image is taken and it's power spectrum is displayed."  << endl << endl
        <<  "Usage:"                                                                      << endl
        << argv[0] << " [image_name -- default lena.jpg]" << endl << endl;
}

int main(int argc, char ** argv)
{
    help(argv);

    const char* filename = argc >=2 ? argv[1] : "lena.jpg";

    Mat I = imread( samples::findFile( filename ), IMREAD_GRAYSCALE);
    if( I.empty()){
        cout << "Error opening image" << endl;
        return EXIT_FAILURE;
    }

    Mat padded;                            //expand input image to optimal size
    int m = getOptimalDFTSize( I.rows );
    int n = getOptimalDFTSize( I.cols ); // on the border add zero values
    copyMakeBorder(I, padded, 0, m - I.rows, 0, n - I.cols, BORDER_CONSTANT, Scalar::all(0));

    Mat planes[] = {Mat_<float>(padded), Mat::zeros(padded.size(), CV_32F)};
    Mat complexI;
    merge(planes, 2, complexI);         // Add to the expanded another plane with zeros

    dft(complexI, complexI);            // this way the result may fit in the source matrix

    // compute the magnitude and switch to logarithmic scale
    // => log(1 + sqrt(Re(DFT(I))^2 + Im(DFT(I))^2))
    split(complexI, planes);                   // planes[0] = Re(DFT(I), planes[1] = Im(DFT(I))
    magnitude(planes[0], planes[1], planes[0]);// planes[0] = magnitude
    Mat magI = planes[0];

    magI += Scalar::all(1);                    // switch to logarithmic scale
    log(magI, magI);

    // crop the spectrum, if it has an odd number of rows or columns
    magI = magI(Rect(0, 0, magI.cols & -2, magI.rows & -2));

    // rearrange the quadrants of Fourier image  so that the origin is at the image center
    int cx = magI.cols/2;
    int cy = magI.rows/2;

    Mat q0(magI, Rect(0, 0, cx, cy));   // Top-Left - Create a ROI per quadrant
    Mat q1(magI, Rect(cx, 0, cx, cy));  // Top-Right
    Mat q2(magI, Rect(0, cy, cx, cy));  // Bottom-Left
    Mat q3(magI, Rect(cx, cy, cx, cy)); // Bottom-Right

    Mat tmp;                           // swap quadrants (Top-Left with Bottom-Right)
    q0.copyTo(tmp);
    q3.copyTo(q0);
    tmp.copyTo(q3);

    q1.copyTo(tmp);                    // swap quadrant (Top-Right with Bottom-Left)
    q2.copyTo(q1);
    tmp.copyTo(q2);

    normalize(magI, magI, 0, 1, NORM_MINMAX); // Transform the matrix with float values into a
                                            // viewable image form (float between values 0 and 1).

    imshow("Input Image"       , I   );    // Show the result
    imshow("spectrum magnitude", magI);
    waitKey();

    return EXIT_SUCCESS;
}

import org.opencv.core.*;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;

import java.util.List;
import java.util.*;

class DiscreteFourierTransformRun{
    private void help() {
        System.out.println("" +
                "This program demonstrated the use of the discrete Fourier transform (DFT). \n" +
                "The dft of an image is taken and it's power spectrum is displayed.\n" +
                "Usage:\n" +
                "./DiscreteFourierTransform [image_name -- default ../data/lena.jpg]");
    }

    public void run(String[] args){

        help();

        String filename = ((args.length > 0) ? args[0] : "../data/lena.jpg");

        Mat I = Imgcodecs.imread(filename, Imgcodecs.IMREAD_GRAYSCALE);
        if( I.empty() ) {
            System.out.println("Error opening image");
            System.exit(-1);
        }

        Mat padded = new Mat();                     //expand input image to optimal size
        int m = Core.getOptimalDFTSize( I.rows() );
        int n = Core.getOptimalDFTSize( I.cols() ); // on the border add zero values
        Core.copyMakeBorder(I, padded, 0, m - I.rows(), 0, n - I.cols(), Core.BORDER_CONSTANT, Scalar.all(0));

        List<Mat> planes = new ArrayList<Mat>();
        padded.convertTo(padded, CvType.CV_32F);
        planes.add(padded);
        planes.add(Mat.zeros(padded.size(), CvType.CV_32F));
        Mat complexI = new Mat();
        Core.merge(planes, complexI);         // Add to the expanded another plane with zeros

        Core.dft(complexI, complexI);         // this way the result may fit in the source matrix

        // compute the magnitude and switch to logarithmic scale
        // => log(1 + sqrt(Re(DFT(I))^2 + Im(DFT(I))^2))
        Core.split(complexI, planes);                               // planes.get(0) = Re(DFT(I)
                                                                    // planes.get(1) = Im(DFT(I))
        Core.magnitude(planes.get(0), planes.get(1), planes.get(0));// planes.get(0) = magnitude
        Mat magI = planes.get(0);

        Mat matOfOnes = Mat.ones(magI.size(), magI.type());
        Core.add(matOfOnes, magI, magI);         // switch to logarithmic scale
        Core.log(magI, magI);

        // crop the spectrum, if it has an odd number of rows or columns
        magI = magI.submat(new Rect(0, 0, magI.cols() & -2, magI.rows() & -2));

        // rearrange the quadrants of Fourier image  so that the origin is at the image center
        int cx = magI.cols()/2;
        int cy = magI.rows()/2;

        Mat q0 = new Mat(magI, new Rect(0, 0, cx, cy));   // Top-Left - Create a ROI per quadrant
        Mat q1 = new Mat(magI, new Rect(cx, 0, cx, cy));  // Top-Right
        Mat q2 = new Mat(magI, new Rect(0, cy, cx, cy));  // Bottom-Left
        Mat q3 = new Mat(magI, new Rect(cx, cy, cx, cy)); // Bottom-Right

        Mat tmp = new Mat();               // swap quadrants (Top-Left with Bottom-Right)
        q0.copyTo(tmp);
        q3.copyTo(q0);
        tmp.copyTo(q3);

        q1.copyTo(tmp);                    // swap quadrant (Top-Right with Bottom-Left)
        q2.copyTo(q1);
        tmp.copyTo(q2);

        magI.convertTo(magI, CvType.CV_8UC1);
        Core.normalize(magI, magI, 0, 255, Core.NORM_MINMAX, CvType.CV_8UC1); // Transform the matrix with float values
                                                                            // into a viewable image form (float between
                                                                            // values 0 and 255).

        HighGui.imshow("Input Image"       , I   );    // Show the result
        HighGui.imshow("Spectrum Magnitude", magI);
        HighGui.waitKey();

        System.exit(0);
    }
}

public class DiscreteFourierTransform {
    public static void main(String[] args) {
        // Load the native library.
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);
        new DiscreteFourierTransformRun().run(args);
    }
}

from __future__ import print_function
import sys

import cv2 as cv
import numpy as np

def print_help():
    print('''
    This program demonstrated the use of the discrete Fourier transform (DFT).
    The dft of an image is taken and it's power spectrum is displayed.
    Usage:
    discrete_fourier_transform.py [image_name -- default lena.jpg]''')

def main(argv):

    print_help()

    filename = argv[0] if len(argv) > 0 else 'lena.jpg'

    I = cv.imread(cv.samples.findFile(filename), cv.IMREAD_GRAYSCALE)
    if I is None:
        print('Error opening image')
        return -1
    rows, cols = I.shape
    m = cv.getOptimalDFTSize( rows )
    n = cv.getOptimalDFTSize( cols )
    padded = cv.copyMakeBorder(I, 0, m - rows, 0, n - cols, cv.BORDER_CONSTANT, value=[0, 0, 0])
    planes = [np.float32(padded), np.zeros(padded.shape, np.float32)]
    complexI = cv.merge(planes)         # Add to the expanded another plane with zeros
    cv.dft(complexI, complexI)         # this way the result may fit in the source matrix
    # compute the magnitude and switch to logarithmic scale
    # = > log(1 + sqrt(Re(DFT(I)) ^ 2 + Im(DFT(I)) ^ 2))
    cv.split(complexI, planes)                   # planes[0] = Re(DFT(I), planes[1] = Im(DFT(I))
    cv.magnitude(planes[0], planes[1], planes[0])# planes[0] = magnitude
    magI = planes[0]
    matOfOnes = np.ones(magI.shape, dtype=magI.dtype)
    cv.add(matOfOnes, magI, magI) #  switch to logarithmic scale
    cv.log(magI, magI)
    magI_rows, magI_cols = magI.shape
    # crop the spectrum, if it has an odd number of rows or columns
    magI = magI[0:(magI_rows & -2), 0:(magI_cols & -2)]
    cx = int(magI_rows/2)
    cy = int(magI_cols/2)

    q0 = magI[0:cx, 0:cy]         # Top-Left - Create a ROI per quadrant
    q1 = magI[cx:cx+cx, 0:cy]     # Top-Right
    q2 = magI[0:cx, cy:cy+cy]     # Bottom-Left
    q3 = magI[cx:cx+cx, cy:cy+cy] # Bottom-Right

    tmp = np.copy(q0)               # swap quadrants (Top-Left with Bottom-Right)
    magI[0:cx, 0:cy] = q3
    magI[cx:cx + cx, cy:cy + cy] = tmp

    tmp = np.copy(q1)               # swap quadrant (Top-Right with Bottom-Left)
    magI[cx:cx + cx, 0:cy] = q2
    magI[0:cx, cy:cy + cy] = tmp
    cv.normalize(magI, magI, 0, 1, cv.NORM_MINMAX) # Transform the matrix with float values into a
    ## viewable image form(float between values 0 and 1).
    cv.imshow("Input Image"       , I   )    # Show the result
    cv.imshow("spectrum magnitude", magI)
    cv.waitKey()

if __name__ == "__main__":
    main(sys.argv[1:])

Explanation#

The Fourier Transform will decompose an image into its sinus and cosines components. In other words, it will transform an image from its spatial domain to its frequency domain. The idea is that any function may be approximated exactly with the sum of infinite sinus and cosines functions. The Fourier Transform is a way how to do this. Mathematically a two dimensional images Fourier transform is:

\[ F(k,l) = \displaystyle\sum\limits_{i=0}^{N-1}\sum\limits_{j=0}^{N-1} f(i,j)e^{-i2\pi(\frac{ki}{N}+\frac{lj}{N})} \]
\[ e^{ix} = \cos{x} + i\sin {x} \]

Here f is the image value in its spatial domain and F in its frequency domain. The result of the transformation is complex numbers. Displaying this is possible either via a real image and a complex image or via a magnitude and a phase image. However, throughout the image processing algorithms only the magnitude image is interesting as this contains all the information we need about the images geometric structure. Nevertheless, if you intend to make some modifications of the image in these forms and then you need to retransform it you’ll need to preserve both of these.

In this sample I’ll show how to calculate and show the magnitude image of a Fourier Transform. In case of digital images are discrete. This means they may take up a value from a given domain value. For example in a basic gray scale image values usually are between zero and 255. Therefore the Fourier Transform too needs to be of a discrete type resulting in a Discrete Fourier Transform (DFT). You’ll want to use this whenever you need to determine the structure of an image from a geometrical point of view. Here are the steps to follow (in case of a gray scale input image I):

Expand the image to an optimal size#

The performance of a DFT is dependent of the image size. It tends to be the fastest for image sizes that are multiple of the numbers two, three and five. Therefore, to achieve maximal performance it is generally a good idea to pad border values to the image to get a size with such traits. The getOptimalDFTSize() returns this optimal size and we can use the copyMakeBorder() function to expand the borders of an image (the appended pixels are initialized with zero):

Mat padded;                            //expand input image to optimal size
int m = getOptimalDFTSize( I.rows );
int n = getOptimalDFTSize( I.cols ); // on the border add zero values
copyMakeBorder(I, padded, 0, m - I.rows, 0, n - I.cols, BORDER_CONSTANT, Scalar::all(0));

Mat padded = new Mat();                     //expand input image to optimal size
int m = Core.getOptimalDFTSize( I.rows() );
int n = Core.getOptimalDFTSize( I.cols() ); // on the border add zero values
Core.copyMakeBorder(I, padded, 0, m - I.rows(), 0, n - I.cols(), Core.BORDER_CONSTANT, Scalar.all(0));

rows, cols = I.shape
m = cv.getOptimalDFTSize( rows )
n = cv.getOptimalDFTSize( cols )
padded = cv.copyMakeBorder(I, 0, m - rows, 0, n - cols, cv.BORDER_CONSTANT, value=[0, 0, 0])

Make place for both the complex and the real values#

The result of a Fourier Transform is complex. This implies that for each image value the result is two image values (one per component). Moreover, the frequency domains range is much larger than its spatial counterpart. Therefore, we store these usually at least in a float format. Therefore we’ll convert our input image to this type and expand it with another channel to hold the complex values:

Mat planes[] = {Mat_<float>(padded), Mat::zeros(padded.size(), CV_32F)};
Mat complexI;
merge(planes, 2, complexI);         // Add to the expanded another plane with zeros

List<Mat> planes = new ArrayList<Mat>();
padded.convertTo(padded, CvType.CV_32F);
planes.add(padded);
planes.add(Mat.zeros(padded.size(), CvType.CV_32F));
Mat complexI = new Mat();
Core.merge(planes, complexI);         // Add to the expanded another plane with zeros

planes = [np.float32(padded), np.zeros(padded.shape, np.float32)]
complexI = cv.merge(planes)         # Add to the expanded another plane with zeros

Make the Discrete Fourier Transform#

It’s possible an in-place calculation (same input as output):

dft(complexI, complexI);            // this way the result may fit in the source matrix

Core.dft(complexI, complexI);         // this way the result may fit in the source matrix

cv.dft(complexI, complexI)         # this way the result may fit in the source matrix

Transform the real and complex values to magnitude#

A complex number has a real (Re) and a complex (imaginary - Im) part. The results of a DFT are complex numbers. The magnitude of a DFT is:

\[ M = \sqrt[2]{ {Re(DFT(I))}^2 + {Im(DFT(I))}^2} \]

Translated to OpenCV code:

split(complexI, planes);                   // planes[0] = Re(DFT(I), planes[1] = Im(DFT(I))
magnitude(planes[0], planes[1], planes[0]);// planes[0] = magnitude
Mat magI = planes[0];

Core.split(complexI, planes);                               // planes.get(0) = Re(DFT(I)
                                                            // planes.get(1) = Im(DFT(I))
Core.magnitude(planes.get(0), planes.get(1), planes.get(0));// planes.get(0) = magnitude
Mat magI = planes.get(0);

cv.split(complexI, planes)                   # planes[0] = Re(DFT(I), planes[1] = Im(DFT(I))
cv.magnitude(planes[0], planes[1], planes[0])# planes[0] = magnitude
magI = planes[0]

Switch to a logarithmic scale#

It turns out that the dynamic range of the Fourier coefficients is too large to be displayed on the screen. We have some small and some high changing values that we can’t observe like this. Therefore the high values will all turn out as white points, while the small ones as black. To use the gray scale values to for visualization we can transform our linear scale to a logarithmic one:

\[ M_1 = \log{(1 + M)} \]

Translated to OpenCV code:

magI += Scalar::all(1);                    // switch to logarithmic scale
log(magI, magI);

Mat matOfOnes = Mat.ones(magI.size(), magI.type());
Core.add(matOfOnes, magI, magI);         // switch to logarithmic scale
Core.log(magI, magI);

matOfOnes = np.ones(magI.shape, dtype=magI.dtype)
cv.add(matOfOnes, magI, magI) #  switch to logarithmic scale
cv.log(magI, magI)

Crop and rearrange#

Remember, that at the first step, we expanded the image? Well, it’s time to throw away the newly introduced values. For visualization purposes we may also rearrange the quadrants of the result, so that the origin (zero, zero) corresponds with the image center.

// crop the spectrum, if it has an odd number of rows or columns
magI = magI(Rect(0, 0, magI.cols & -2, magI.rows & -2));

// rearrange the quadrants of Fourier image  so that the origin is at the image center
int cx = magI.cols/2;
int cy = magI.rows/2;

Mat q0(magI, Rect(0, 0, cx, cy));   // Top-Left - Create a ROI per quadrant
Mat q1(magI, Rect(cx, 0, cx, cy));  // Top-Right
Mat q2(magI, Rect(0, cy, cx, cy));  // Bottom-Left
Mat q3(magI, Rect(cx, cy, cx, cy)); // Bottom-Right

Mat tmp;                           // swap quadrants (Top-Left with Bottom-Right)
q0.copyTo(tmp);
q3.copyTo(q0);
tmp.copyTo(q3);

q1.copyTo(tmp);                    // swap quadrant (Top-Right with Bottom-Left)
q2.copyTo(q1);
tmp.copyTo(q2);

// crop the spectrum, if it has an odd number of rows or columns
magI = magI.submat(new Rect(0, 0, magI.cols() & -2, magI.rows() & -2));

// rearrange the quadrants of Fourier image  so that the origin is at the image center
int cx = magI.cols()/2;
int cy = magI.rows()/2;

Mat q0 = new Mat(magI, new Rect(0, 0, cx, cy));   // Top-Left - Create a ROI per quadrant
Mat q1 = new Mat(magI, new Rect(cx, 0, cx, cy));  // Top-Right
Mat q2 = new Mat(magI, new Rect(0, cy, cx, cy));  // Bottom-Left
Mat q3 = new Mat(magI, new Rect(cx, cy, cx, cy)); // Bottom-Right

Mat tmp = new Mat();               // swap quadrants (Top-Left with Bottom-Right)
q0.copyTo(tmp);
q3.copyTo(q0);
tmp.copyTo(q3);

q1.copyTo(tmp);                    // swap quadrant (Top-Right with Bottom-Left)
q2.copyTo(q1);
tmp.copyTo(q2);

magI_rows, magI_cols = magI.shape
# crop the spectrum, if it has an odd number of rows or columns
magI = magI[0:(magI_rows & -2), 0:(magI_cols & -2)]
cx = int(magI_rows/2)
cy = int(magI_cols/2)

q0 = magI[0:cx, 0:cy]         # Top-Left - Create a ROI per quadrant
q1 = magI[cx:cx+cx, 0:cy]     # Top-Right
q2 = magI[0:cx, cy:cy+cy]     # Bottom-Left
q3 = magI[cx:cx+cx, cy:cy+cy] # Bottom-Right

tmp = np.copy(q0)               # swap quadrants (Top-Left with Bottom-Right)
magI[0:cx, 0:cy] = q3
magI[cx:cx + cx, cy:cy + cy] = tmp

tmp = np.copy(q1)               # swap quadrant (Top-Right with Bottom-Left)
magI[cx:cx + cx, 0:cy] = q2
magI[0:cx, cy:cy + cy] = tmp

Normalize#

This is done again for visualization purposes. We now have the magnitudes, however this are still out of our image display range of zero to one. We normalize our values to this range using the cv::normalize() function.

normalize(magI, magI, 0, 1, NORM_MINMAX); // Transform the matrix with float values into a
                                        // viewable image form (float between values 0 and 1).

Core.normalize(magI, magI, 0, 255, Core.NORM_MINMAX, CvType.CV_8UC1); // Transform the matrix with float values
                                                                    // into a viewable image form (float between
                                                                    // values 0 and 255).

cv.normalize(magI, magI, 0, 1, cv.NORM_MINMAX) # Transform the matrix with float values into a
## viewable image form(float between values 0 and 1).

Result#

An application idea would be to determine the geometrical orientation present in the image. For example, let us find out if a text is horizontal or not? Looking at some text you’ll notice that the text lines sort of form also horizontal lines and the letters form sort of vertical lines. These two main components of a text snippet may be also seen in case of the Fourier transform. Let us use this horizontal and this rotated image about a text.

In case of the horizontal text:

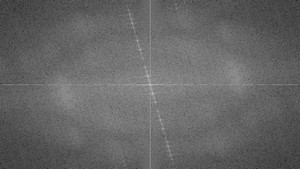

In case of a rotated text:

You can see that the most influential components of the frequency domain (brightest dots on the magnitude image) follow the geometric rotation of objects on the image. From this we may calculate the offset and perform an image rotation to correct eventual miss alignments.
