Changing the contrast and brightness of an image!#


Original author	Ana Huamán
Compatibility	OpenCV >= 3.0

Goal#

In this tutorial you will learn how to:

Access pixel values
Initialize a matrix with zeros
Learn what cv::saturate_cast does and why it is useful
Get some cool info about pixel transformations
Improve the brightness of an image on a practical example

Theory#

Note

The explanation below belongs to the book Computer Vision: Algorithms and Applications by Richard Szeliski

Image Processing#

A general image processing operator is a function that takes one or more input images and produces an output image.
Image transforms can be seen as:
- Point operators (pixel transforms)
- Neighborhood (area-based) operators

Pixel Transforms#

In this kind of image processing transform, each output pixel’s value depends on only the corresponding input pixel value (plus, potentially, some globally collected information or parameters).
Examples of such operators include brightness and contrast adjustments as well as color correction and transformations.

Brightness and contrast adjustments#

Two commonly used point processes are multiplication and addition with a constant:

\[ g(x) = \alpha f(x) + \beta \]
The parameters \(\alpha > 0\) and \(\beta\) are often called the gain and bias parameters; sometimes these parameters are said to control contrast and brightness respectively.
You can think of \(f(x)\) as the source image pixels and \(g(x)\) as the output image pixels. Then, more conveniently we can write the expression as:

\[ g(i,j) = \alpha \cdot f(i,j) + \beta \]

where \(i\) and \(j\) indicates that the pixel is located in the i-th row and j-th column.

Code#

C++

Downloadable code: Click here

The following code performs the operation \(g(i,j) = \alpha \cdot f(i,j) + \beta\) :

#include "opencv2/imgcodecs.hpp"
#include "opencv2/highgui.hpp"
#include <iostream>

// we're NOT "using namespace std;" here, to avoid collisions between the beta variable and std::beta in c++17
using std::cin;
using std::cout;
using std::endl;
using namespace cv;

int main( int argc, char** argv )
{
    /// Read image given by user
    CommandLineParser parser( argc, argv, "{@input | lena.jpg | input image}" );
    Mat image = imread( samples::findFile( parser.get<String>( "@input" ) ) );
    if( image.empty() )
    {
      cout << "Could not open or find the image!\n" << endl;
      cout << "Usage: " << argv[0] << " <Input image>" << endl;
      return -1;
    }

    Mat new_image = Mat::zeros( image.size(), image.type() );

    double alpha = 1.0; /*< Simple contrast control */
    int beta = 0;       /*< Simple brightness control */

    /// Initialize values
    cout << " Basic Linear Transforms " << endl;
    cout << "-------------------------" << endl;
    cout << "* Enter the alpha value [1.0-3.0]: "; cin >> alpha;
    cout << "* Enter the beta value [0-100]: ";    cin >> beta;

    /// Do the operation new_image(i,j) = alpha*image(i,j) + beta
    /// Instead of these 'for' loops we could have used simply:
    /// image.convertTo(new_image, -1, alpha, beta);
    /// but we wanted to show you how to access the pixels :)
    for( int y = 0; y < image.rows; y++ ) {
        for( int x = 0; x < image.cols; x++ ) {
            for( int c = 0; c < image.channels(); c++ ) {
                new_image.at<Vec3b>(y,x)[c] =
                  saturate_cast<uchar>( alpha*image.at<Vec3b>(y,x)[c] + beta );
            }
        }
    }

    /// Show stuff
    imshow("Original Image", image);
    imshow("New Image", new_image);

    /// Wait until the user press a key
    waitKey();
    return 0;
}

Java

Downloadable code: Click here

The following code performs the operation \(g(i,j) = \alpha \cdot f(i,j) + \beta\) :

import java.util.Scanner;

import org.opencv.core.Core;
import org.opencv.core.Mat;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;

class BasicLinearTransforms {
    private byte saturate(double val) {
        int iVal = (int) Math.round(val);
        iVal = iVal > 255 ? 255 : (iVal < 0 ? 0 : iVal);
        return (byte) iVal;
    }

    public void run(String[] args) {
        /// Read image given by user
        String imagePath = args.length > 0 ? args[0] : "../data/lena.jpg";
        Mat image = Imgcodecs.imread(imagePath);
        if (image.empty()) {
            System.out.println("Empty image: " + imagePath);
            System.exit(0);
        }

        Mat newImage = Mat.zeros(image.size(), image.type());

        double alpha = 1.0; /*< Simple contrast control */
        int beta = 0;       /*< Simple brightness control */

        /// Initialize values
        System.out.println(" Basic Linear Transforms ");
        System.out.println("-------------------------");
        try (Scanner scanner = new Scanner(System.in)) {
            System.out.print("* Enter the alpha value [1.0-3.0]: ");
            alpha = scanner.nextDouble();
            System.out.print("* Enter the beta value [0-100]: ");
            beta = scanner.nextInt();
        }

        /// Do the operation newImage(i,j) = alpha*image(i,j) + beta
        /// Instead of these 'for' loops we could have used simply:
        /// image.convertTo(newImage, -1, alpha, beta);
        /// but we wanted to show you how to access the pixels :)
        byte[] imageData = new byte[(int) (image.total()*image.channels())];
        image.get(0, 0, imageData);
        byte[] newImageData = new byte[(int) (newImage.total()*newImage.channels())];
        for (int y = 0; y < image.rows(); y++) {
            for (int x = 0; x < image.cols(); x++) {
                for (int c = 0; c < image.channels(); c++) {
                    double pixelValue = imageData[(y * image.cols() + x) * image.channels() + c];
                    /// Java byte range is [-128, 127]
                    pixelValue = pixelValue < 0 ? pixelValue + 256 : pixelValue;
                    newImageData[(y * image.cols() + x) * image.channels() + c]
                            = saturate(alpha * pixelValue + beta);
                }
            }
        }
        newImage.put(0, 0, newImageData);

        /// Show stuff
        HighGui.imshow("Original Image", image);
        HighGui.imshow("New Image", newImage);

        /// Wait until user press some key
        HighGui.waitKey();
        System.exit(0);
    }
}

public class BasicLinearTransformsDemo {
    public static void main(String[] args) {
        // Load the native OpenCV library
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);

        new BasicLinearTransforms().run(args);
    }
}

Python

Downloadable code: Click here

The following code performs the operation \(g(i,j) = \alpha \cdot f(i,j) + \beta\) :

from __future__ import print_function
from builtins import input
import cv2 as cv
import numpy as np
import argparse

# Read image given by user
parser = argparse.ArgumentParser(description='Code for Changing the contrast and brightness of an image! tutorial.')
parser.add_argument('--input', help='Path to input image.', default='lena.jpg')
args = parser.parse_args()

image = cv.imread(cv.samples.findFile(args.input))
if image is None:
    print('Could not open or find the image: ', args.input)
    exit(0)

new_image = np.zeros(image.shape, image.dtype)

alpha = 1.0 # Simple contrast control
beta = 0    # Simple brightness control

# Initialize values
print(' Basic Linear Transforms ')
print('-------------------------')
try:
    alpha = float(input('* Enter the alpha value [1.0-3.0]: '))
    beta = int(input('* Enter the beta value [0-100]: '))
except ValueError:
    print('Error, not a number')

# Do the operation new_image(i,j) = alpha*image(i,j) + beta
# Instead of these 'for' loops we could have used simply:
# new_image = cv.convertScaleAbs(image, alpha=alpha, beta=beta)
# but we wanted to show you how to access the pixels :)
for y in range(image.shape[0]):
    for x in range(image.shape[1]):
        for c in range(image.shape[2]):
            new_image[y,x,c] = np.clip(alpha*image[y,x,c] + beta, 0, 255)

# Show stuff
cv.imshow('Original Image', image)
cv.imshow('New Image', new_image)

# Wait until user press some key
cv.waitKey()

Result#

Running our code and using \(\alpha = 2.2\) and \(\beta = 50\)

$ ./BasicLinearTransforms lena.jpg
Basic Linear Transforms
-------------------------
* Enter the alpha value [1.0-3.0]: 2.2
* Enter the beta value [0-100]: 50

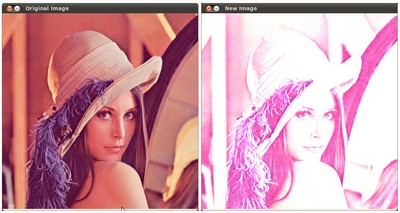

We get this:

Practical example#

In this paragraph, we will put into practice what we have learned to correct an underexposed image by adjusting the brightness and the contrast of the image. We will also see another technique to correct the brightness of an image called gamma correction.

Brightness and contrast adjustments#

Increasing (/ decreasing) the \(\beta\) value will add (/ subtract) a constant value to every pixel. Pixel values outside of the [0 ; 255] range will be saturated (i.e. a pixel value higher (/ lesser) than 255 (/ 0) will be clamped to 255 (/ 0)).

In light gray, histogram of the original image, in dark gray when brightness = 80 in Gimp

The histogram represents for each color level the number of pixels with that color level. A dark image will have many pixels with low color value and thus the histogram will present a peak in its left part. When adding a constant bias, the histogram is shifted to the right as we have added a constant bias to all the pixels.

The \(\alpha\) parameter will modify how the levels spread. If \( \alpha < 1 \), the color levels will be compressed and the result will be an image with less contrast.

In light gray, histogram of the original image, in dark gray when contrast < 0 in Gimp

Note that these histograms have been obtained using the Brightness-Contrast tool in the Gimp software. The brightness tool should be identical to the \(\beta\) bias parameters but the contrast tool seems to differ to the \(\alpha\) gain where the output range seems to be centered with Gimp (as you can notice in the previous histogram).

It can occur that playing with the \(\beta\) bias will improve the brightness but in the same time the image will appear with a slight veil as the contrast will be reduced. The \(\alpha\) gain can be used to diminue this effect but due to the saturation, we will lose some details in the original bright regions.

Gamma correction#

Gamma correction can be used to correct the brightness of an image by using a non linear transformation between the input values and the mapped output values:

\[ O = \left( \frac{I}{255} \right)^{\gamma} \times 255 \]

As this relation is non linear, the effect will not be the same for all the pixels and will depend to their original value.

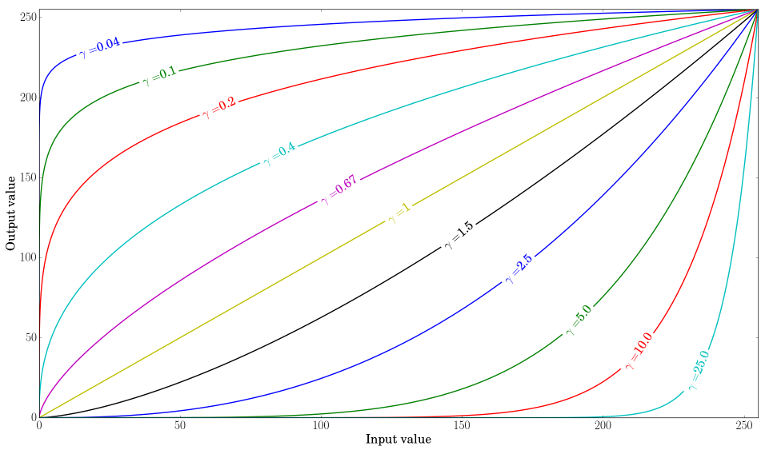

Plot for different values of gamma

When \( \gamma < 1 \), the original dark regions will be brighter and the histogram will be shifted to the right whereas it will be the opposite with \( \gamma > 1 \).

Correct an underexposed image#

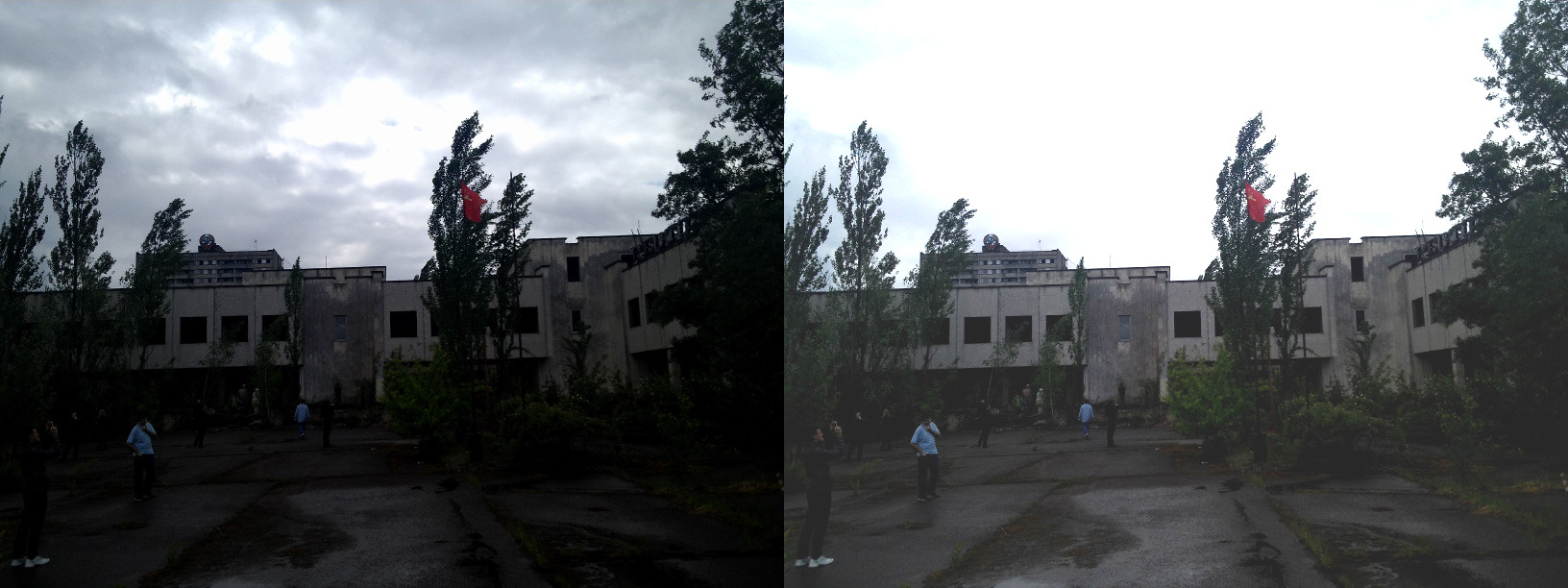

The following image has been corrected with: \( \alpha = 1.3 \) and \( \beta = 40 \).

By Visem (Own work) [CC BY-SA 3.0], via Wikimedia Commons { width=90% }

The overall brightness has been improved but you can notice that the clouds are now greatly saturated due to the numerical saturation of the implementation used (highlight clipping in photography).

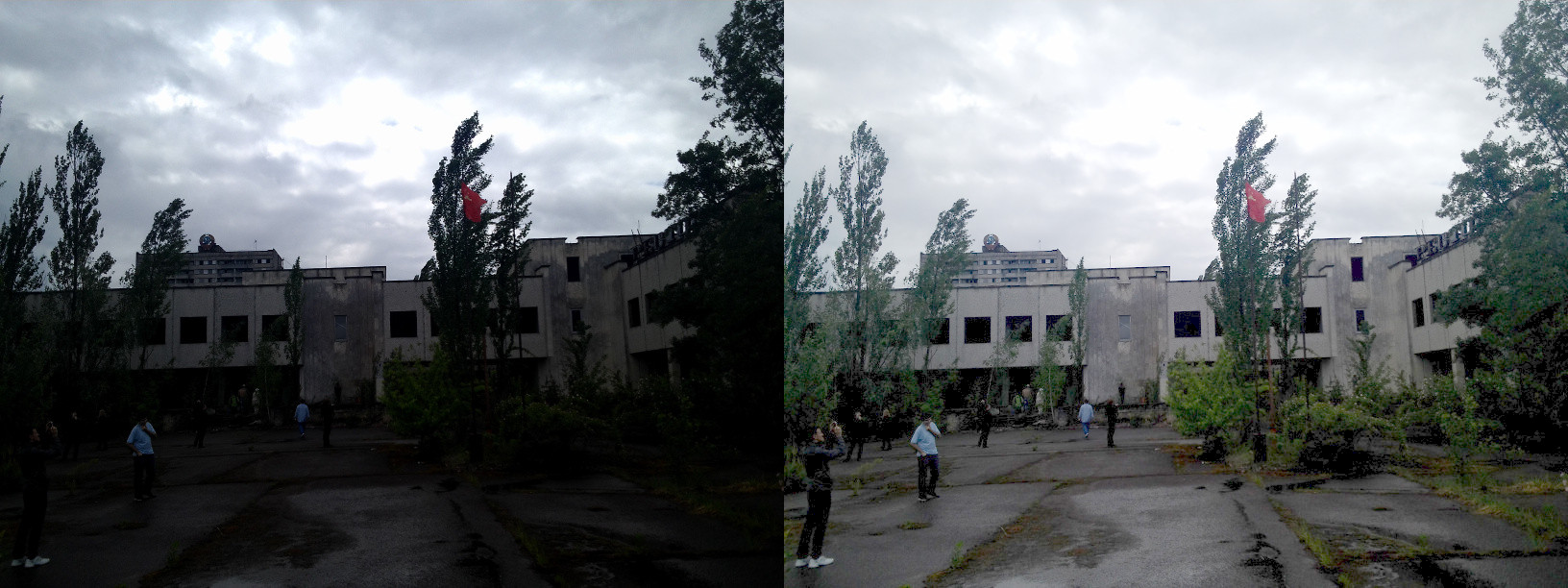

The following image has been corrected with: \( \gamma = 0.4 \).

By Visem (Own work) [CC BY-SA 3.0], via Wikimedia Commons { width=90% }

The gamma correction should tend to add less saturation effect as the mapping is non linear and there is no numerical saturation possible as in the previous method.

Left: histogram after alpha, beta correction ; Center: histogram of the original image ; Right: histogram after the gamma correction

The previous figure compares the histograms for the three images (the y-ranges are not the same between the three histograms). You can notice that most of the pixel values are in the lower part of the histogram for the original image. After \( \alpha \), \( \beta \) correction, we can observe a big peak at 255 due to the saturation as well as a shift in the right. After gamma correction, the histogram is shifted to the right but the pixels in the dark regions are more shifted (see the gamma curves figure) than those in the bright regions.

In this tutorial, you have seen two simple methods to adjust the contrast and the brightness of an image. They are basic techniques and are not intended to be used as a replacement of a raster graphics editor!

Code#

C++

Code for the tutorial is here.

Java

Code for the tutorial is here.

Python

Code for the tutorial is here.

Code for the gamma correction:

C++

Mat lookUpTable(1, 256, CV_8U);
uchar* p = lookUpTable.ptr();
for( int i = 0; i < 256; ++i)
    p[i] = saturate_cast<uchar>(pow(i / 255.0, gamma_) * 255.0);

Mat res = img.clone();
LUT(img, lookUpTable, res);

Java

Mat lookUpTable = new Mat(1, 256, CvType.CV_8U);
byte[] lookUpTableData = new byte[(int) (lookUpTable.total()*lookUpTable.channels())];
for (int i = 0; i < lookUpTable.cols(); i++) {
    lookUpTableData[i] = saturate(Math.pow(i / 255.0, gammaValue) * 255.0);
}
lookUpTable.put(0, 0, lookUpTableData);
Mat img = new Mat();
Core.LUT(matImgSrc, lookUpTable, img);

Python

lookUpTable = np.empty((1,256), np.uint8)
for i in range(256):
    lookUpTable[0,i] = np.clip(pow(i / 255.0, gamma) * 255.0, 0, 255)

res = cv.LUT(img_original, lookUpTable)

A look-up table is used to improve the performance of the computation as only 256 values needs to be calculated once.
